Product Overview

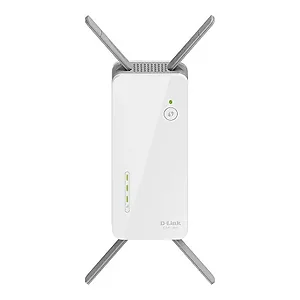

The DAP-1860 AC2600 Wi-Fi Range Extender will extend the coverage of your home’s existing wireless network and eliminate dead zones. With a sleek design and wireless speeds of up to 2,532Mbps (1,732 Mbps on the 5GHz + 800Mbps on the 2.4GHz), the DAP-1860 will let you enjoy a fast wireless connection. Featuring a 4x4 antenna configuration, SmartConnect and Smart BeamForming technology, the DAP-1860 offers better data rates, fewer dead-spots, more coverage, and increased reliability. It is ideal for multiple devices, 4K streaming and online gaming.
Technical Specifications
Device Interfaces
802.11ac/n/g/b/a Wireless LAN
1x Gigabit Ethernet Port
Reset Button
WPS Button LEDs
Status/WPS
3 Segment Wi-Fi Signal Strength Indicator Standards
IEEE 802.11ac
IEEE 802.11n
IEEE 802.11g
IEEE 802.11b
IEEE 802.11a
IEEE 802.3ab Antennas
Four Adjustable External Antennas Plug Type
Region dependent Wireless Security
Wi-Fi Protected Access (WPA/WPA2)
WPS (PBC) Advanced Features
D-Link One-Touch Extender Setup Device Management
Supports QRS Mobile app for iPhone, iPad, iPod touch, and Android mobile devices
Web UI Power
Input: 110 to 240 V AC, 50/60 Hz Temperature
Operating: 0 to 40 oC (32 to 104 oF)
Storage: -20 to 65 oC (-4 to 149 oF) Humidity
Operating: 10% to 90% non-condensing
Storage: 5% to 95% non-condensing Certifications
FCC
CE
C-Tick
RoHS
CB
LVD
WPS Setup
Wi-Fi Certified Item Dimension (L inchxW inchxH inch)
7 x 3 x 2
Weight
1.00 lb
Warranty Information
1 Year
