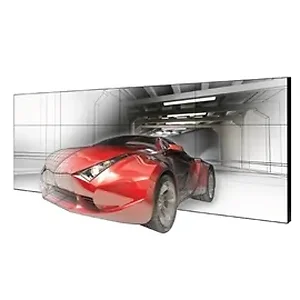

Planar 997-7474-00 Clarity Matrix LX46S 3D LCD Video Wall Monitor 46"

Out of Stock
Condition: New

$8,729.09  $11,784.27
Free Shipping for this Item

Product Overview

The Clarity Matrix LX46S is a state-of-the-art 46-inch LCD video wall monitor specifically designed for professional visualization environments. Offering flicker-free stereoscopic 3D capabilities, it pushes the boundaries of visual technology. With its ultra-shallow installation depth and integrated EasyAxis Mounting System, it provides exceptional 3D visualization while maintaining a sleek appearance.

This commercial-grade display showcases stunning graphics in 1366 x 768 resolution, featuring high brightness and an impressive contrast ratio, ideal for various applications in corporate or exhibition settings.

Technical Specifications

  • Technology: Commercial-grade direct view LCD
  • Diagonal: 46 inches
  • Aspect Ratio: 16:9
  • Native Resolution: 1366 x 768
  • Tiled Bezel Width: 7.1mm
  • Brightness (typ): 450 nits
  • Response Time (typ): 8 ms
  • Contrast Ratio (full field): 4500:1
  • Full Viewing Angle: 178 degrees
  • Backlight Life (1/2 brightness): 50,000 hours
  • Mounted Depth: 3.6" from wall to front of screen
  • Acoustic Noise: Fanless operation
  • Heat Load: 623 BTU/hour at 500 nits
  • Operating Temperature Range: 0-35°C
  • Operating Humidity Range: 20-80% RH non-condensing
  • Backlight Control: Individual and wall control
  • Power Consumption (max): 230 watts (typical)
  • Power Supply Voltage: 100-230V AC +/- 10%, 50 to 60 Hz
  • Power Status: Diagnostics LEDs, health monitoring and alerts
  • Safety Regulations: Complies with EN60950, FCC Class A, CISPR22/85, CE, EU RoHS
  • Data Inputs: 4 HDMI Inputs, 1 DisplayPort Input
  • Control: IR Remote, RS232, Ethernet (optional)
  • Item Dimensions: 40.30" x 22.77" x 4.2"
  • Weight: 150 lbs
  • Warranty: 3 years

Product Details

  • Manufacturer:
  • Model Number:
  • Condition:
  • Weight:
  • Dimensions:
  • Updated:
  • Added:
  • PLANAR
  • 997-7474-00
  • New
  • 150 lbs
  • 0 X 0 X 0
  • Feb 19, 2026
  • Mar 27, 2014
Product Identifiers: Brand: Planar • Part #: 997-7474-00 • Category: Monitors

Planar 997-7474-00 Clarity Matrix LX46S 3D LCD Video Wall Monitor 46"
