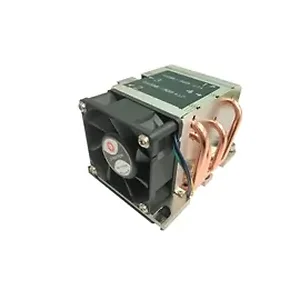

Dynatron B5 Fan B5 2U Intel LGA3647 Narrow ILM PWM Fan Alum HS with heatpipe 205W Brown Box
Out of Stock
Condition: New
$63.23$85.36
Free Shipping for this Item
Product Overview
FeaturesSupports Intel Socket FCLGA 3647 Narrow ILMAluminum heatsink with heatpipe4-pin PWM Controlled FanSupports up to TDP 205 WattsRecommended for 2U Server and upSpecificationsCPU Support: Supports Intel FCLGA 3647Connection: 4 Pin (PWM)Voltage: 12VSpeed: At Duty Cycle 20%: 1400 RPMPerformance: At Duty Cycle 20%: 8.12 CFMVolume: At Duty Cycle 20%: 16 dBAAir Pressure: At Duty Cycle 20%: 0.58mm-H2OLead Wire Pin Out: Pin1- (-), Pin2- (+)Weight: 1.03 lbs- SKU: AZTY22723
Technical Specifications
CPU Support Intel CPU Socket FCLGA3647 Solution 2U Server and Up Material Aluminum Heatsink with Heatpipe Embedded Fan Dimension 60 x 60 x 25 mm Speed At Duty Cycle 20%: 1400 +-200 RPM At Duty Cycle 3400 +- 10% RPM At Duty Cycle 100%: 7000 +- 10% RPM Rated Voltage 12V Bearing 2 Ball Bearing Power At Duty Cycle 20%: 0.90 W At Duty Cycle 50%: 2.04 W At Duty Cycle 100%: 5.40 W Air Flow At Duty Cycle 20%: 8.12 CFM At Duty Cycle 50%: 20.31 CFM At Duty Cycle 100%: 40.60 CFM Noise Level At Duty Cycle 20%: 16 dBA At Duty Cycle 50%: 35 dBA At Duty Cycle 100%: 50 dBA Air Pressure At Duty Cycle 20%: 0.58mm-H2O At Duty Cycle 50%: 3.65 mm-H2O At Duty Cycle 100%: 14.58 mm-H2O Lead Wire Pin Out Lead Wire Pin Out Pin1- (-) Pin2- (+) Pin3- (Techometer/Signal output) Pin4- (PWM) Thermal Grease Shin-Etsu 7762 Pre-printed Weight 2.00lb Warranty Information 1 Year
