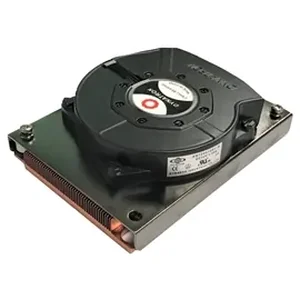

Dynatron B3 FAN B3 1U Intel LGA3647 Narrow ILM 80x15mm Aluminum PWM 165W 12V Brown Box
Out of Stock
Condition: New
$63.78$86.10
Free Shipping for this Item
Product Overview
Product DescriptionIntel® Socket FCLGA3647 Narrow ILM 80x15mm Aluminum PWM Blower Fan, Copper skiving heatsink for 1U Server up to CPU power 165 Watts.Features• MAX TDP: 165 Watts• FAN: 80x15mm Aluminum PWM Blower Fan • SOKET: FCLGA3647• HEATSINK: Copper HeatsinkCPU SupportIntelCPU SocketFCLGA3647Solution1U Server and UpMaterialCopper 1100 with Skived FinsFan Dimension80 x 15 mmSpeedAt Duty Cycle 20%: 1000 +/- 200 RPM At Duty Cycle 50%: 4000 +/- 10% RPM At Duty Cycle 100%: 7000 +/- 10% RPMRated Voltage12VBearing2 Ball BearingPowerAt Duty Cycle 20%: 0.60 W At Duty Cycle 50%: 3.84 W At Duty Cycle 100%: 19.2 WAir FlowAt Duty Cycle 20%: 3.0 CFM At Duty Cycle 50%: 12.0 CFM At Duty Cycle 100%: 21.0 CFMNoise LevelAt Duty Cycle 20%: 16 dBA At Duty Cycle 50%: 44.9 dBA At Duty Cycle 100%: 57.1 dBAAir PressureAt Duty Cycle 20%: 1.5 mm-H2O At Duty Cycle 50%: 23.2 mm-H2O At Duty Cycle 100%: 70.9 mm-H2OLead Wire Pin OutLead Wire Pin Out Pin1- (-) Pin2- (+) Pin3- (Techometer/Signal output) Pin4- (PWM)Thermal GreaseShin-Etsu 7762 Pre-printedItem Dimension (L inchxW inchxH inch)5 x 5 x 3Weight1.01 lbWarranty Information1 Year
Technical Specifications
CPU Support Intel CPU Socket FCLGA3647 Solution 1U Server and Up Material Copper 1100 with Skived Fins Fan Dimension 80 x 15 mm Speed At Duty Cycle 20%: 1000 +/- 200 RPM At Duty Cycle 50%: 4000 +/- 10% RPM At Duty Cycle 100%: 7000 +/- 10% RPM Rated Voltage 12V Bearing 2 Ball Bearing Power At Duty Cycle 20%: 0.60 W At Duty Cycle 50%: 3.84 W At Duty Cycle 100%: 19.2 W Air Flow At Duty Cycle 20%: 3.0 CFM At Duty Cycle 50%: 12.0 CFM At Duty Cycle 100%: 21.0 CFM Noise Level At Duty Cycle 20%: 16 dBA At Duty Cycle 50%: 44.9 dBA At Duty Cycle 100%: 57.1 dBA Air Pressure At Duty Cycle 20%: 1.5 mm-H2O At Duty Cycle 50%: 23.2 mm-H2O At Duty Cycle 100%: 70.9 mm-H2O Lead Wire Pin Out Lead Wire Pin Out Pin1- (-) Pin2- (+) Pin3- (Techometer/Signal output) Pin4- (PWM) Thermal Grease Shin-Etsu 7762 Pre-printed Item Dimension (L inchxW inchxH inch) 5 x 5 x 3 Weight 1.01 lb Warranty Information 1 Year
