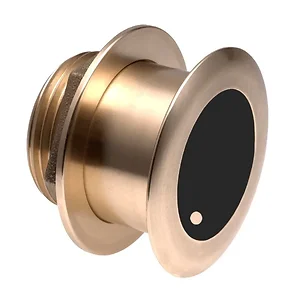

B175C-20-MW-0 - Airmar B175C-20-MW 20d Tilt Medium CHIRP Ultra Wide with Bare Wire MMC

Airmar B175MW Medium Ultra-Wide 20 deg Tilted Element™ Thru-Hull - With Bare Wire Mix-N-Match Cable

• Fixed 20° tilted version for 16° to 24° hull deadrise
• Depth and fast-response water-temperature sensor
• 1 kW with depth tracking down to 400 m (1,300#39;)
• Medium frequency: 60-100 kHz
• 57° to 73° beamwidth (port/starboard)
• 16° average fore/aft
• 40 kHz of total bandwidth from one transducer
• Medium frequency for superior mid-depth performance and excellent fish-target separation
• Bronze housing for use on stepped, planing or displacement hull
• Low-profile, thru-hull housing yields good resolution at speed when installed properly
• Exclusive Xducer ID® technology

AIRMAR’s innovative transducer designs have revolutionized the fishing world, and they continue to do so with the NEW Chirp-ready B175 Medium Ultra-Wide (MW) Tilted Element™ Thru-hull transducer. The B175MW takes transducer design and performance to a whole new level by using medium frequency (60-100 kHz) with an incredible ultra-wide beamwidth ranging from 57-73° port-starboard to 16° average fore-aft. Maximum coverage under the boat is achieved with this medium-frequency transducer, serving anglers who target pelagic species in the upper water column.

Airmar’s new Medium Ultra-Wide models are perfect for seeking deeper species with a frequency band from 60-100 kHz. When paired with our other popular models such as the B275LHW, provides the angler with a broad set of frequencies (Low, Medium-Wide, High-Wide) to interrogate targets from deep to shallow.

******************************************************************
As of 05/29/2024 the bare wire only works with the Garmin GSD28
******************************************************************

• B175C-20-MW-MM 20d Tilt Medium CHIRP Ultra Wide
• MMC-0 bare Wire Mix-n-Match Cable

The Airmar B175C-20-MW-0 is a 1 kW thru-hull transducer designed for marine applications, providing depth and fast-response water temperature sensing. It features a fixed 20-degree tilted element, suitable for hulls with a deadrise between 16 and 24 degrees. This transducer operates at a medium frequency range of 60-100 kHz, offering 40 kHz of total bandwidth. Its ultra-wide beamwidth, ranging from 57 to 73 degrees port/starboard and 16 degrees average fore/aft, is intended for comprehensive coverage, particularly beneficial for targeting pelagic species in the upper water column or seeking deeper species. The bronze housing is compatible with fiberglass or wood hulls up to 11 meters (36 feet) LOA, and its low-profile design aims for good resolution at speed. It includes a 9-meter bare wire Mix-N-Match cable, compatible with the Garmin GSD28 as of May 29, 2024. The unit supports depth tracking down to 400 meters (1,300 feet) and incorporates Airmar's Xducer ID technology.
