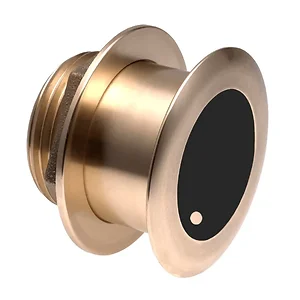

B175C-12-MW-0 - Airmar B175C-12-MW 12d Tilt Medium CHIRP Ultra Wide With Bare Wire MMC

Airmar B175MW Medium Ultra-Wide 12 deg Tilted Element™ Thru-Hull - Bare wire Mix-n-Match Cable

• Fixed 12° tilted version for 8° to 15° hull deadrise
• Depth and fast-response water-temperature sensor
• 1 kW with depth tracking down to 400 m (1,300#39;)
• Medium frequency: 60-100 kHz
• 57° to 73° beamwidth (port/starboard)
• 16° average fore/aft
• 40 kHz of total bandwidth from one transducer
• Medium frequency for superior mid-depth performance and excellent fish-target separation
• Bronze housing for use on stepped, planing or displacement hull
• Low-profile, thru-hull housing yields good resolution at speed when installed properly
• Exclusive Xducer ID® technology

AIRMAR’s innovative transducer designs have revolutionized the fishing world, and they continue to do so with the NEW Chirp-ready B175 Medium Ultra-Wide (MW) Tilted Element™ Thru-hull transducer. The B175MW takes transducer design and performance to a whole new level by using medium frequency (60-100 kHz) with an incredible ultra-wide beamwidth ranging from 57-73° port-starboard to 16° average fore-aft. Maximum coverage under the boat is achieved with this medium-frequency transducer, serving anglers who target pelagic species in the upper water column.

Airmar’s new Medium Ultra-Wide models are perfect for seeking deeper species with a frequency band from 60-100 kHz. When paired with our other popular models such as the B275LHW, provides the angler with a broad set of frequencies (Low, Medium-Wide, High-Wide) to interrogate targets from deep to shallow.

******************************************************************
As of 05/29/2024 the bare wire only works with the Garmin GSD28
******************************************************************

• B175C-12-MW-MM Medium Ultra-Wide Chirp, 1kW, 12° Tilt
• MMC-0 Bare Wire Mix-n-Match Cable

The Airmar B175C-12-MW 12d Tilt Medium CHIRP Ultra Wide Thru-Hull transducer, part number B175C-12-MW-0, is designed for marine applications requiring precise depth and temperature data. This 1 kW transducer operates at a medium frequency range of 60-100 kHz, offering depth tracking down to 400 meters (1,300 feet). It features an ultra-wide beamwidth of 57� to 73� port/starboard and 16� average fore/aft, providing extensive coverage for identifying fish targets in the upper water column and at mid-depths. The fixed 12� tilted element is suitable for hulls with an 8� to 15� deadrise, ensuring optimal performance. Constructed with a bronze housing, it is compatible with fiberglass or wood hulls up to 11 meters (36 feet) LOA. The low-profile design aims for good resolution at speed, and it includes Xducer ID technology. This unit is intended for IT and marine professionals seeking reliable underwater data acquisition for navigation and fishing applications.
