B175C-0-MW-0 - Airmar B175C-0-MW 0d Tilt Medium CHIRP Ultra Wide with Bare Wire MMC

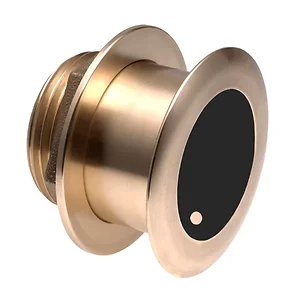

Airmar B175MW Medium Ultra-Wide 0 deg Tilted Element™ Thru-Hull - with Bare Wire Mix-n-Match Cable

• Fixed 0° tilted version for 0° to 7° hull deadrise
• Depth and fast-response water-temperature sensor
• 1 kW with depth tracking down to 400 m (1,300#39;)
• Medium frequency: 60-100 kHz
• 57° to 73° beamwidth (port/starboard)
• 16° average fore/aft
• 40 kHz of total bandwidth from one transducer
• Medium frequency for superior mid-depth performance and excellent fish-target separation
• Bronze housing for use on stepped, planing or displacement hull
• Low-profile, thru-hull housing yields good resolution at speed when installed properly
• Exclusive Xducer ID® technology

AIRMAR’s innovative transducer designs have revolutionized the fishing world, and they continue to do so with the NEW Chirp-ready B175 Medium Ultra-Wide (MW) Tilted Element™ Thru-hull transducer. The B175MW takes transducer design and performance to a whole new level by using medium frequency (60-100 kHz) with an incredible ultra-wide beamwidth ranging from 57-73° port-starboard to 16° average fore-aft. Maximum coverage under the boat is achieved with this medium-frequency transducer, serving anglers who target pelagic species in the upper water column.

Airmar’s new Medium Ultra-Wide models are perfect for seeking deeper species with a frequency band from 60-100 kHz. When paired with our other popular models such as the B275LHW, provides the angler with a broad set of frequencies (Low, Medium-Wide, High-Wide) to interrogate targets from deep to shallow.

******************************************************************
As of 05/29/2024 the bare wire only works with the Garmin GSD28
******************************************************************

• MMC-0 Bare Wire Mix-n-Match Cable
• B175C-0-MW-MM 0d Tilt Medium CHIRP Ultra Wide
,

Airmar B175MW Medium Ultra-Wide 0 deg Tilted Element™ Thru-Hull - with Bare Wire Mix-n-Match Cable

Model: B175C-0-MW-0

• Fixed 0° tilted version for 0° to 7° hull deadrise
• Depth and fast-response water-temperature sensor
• 1 kW with depth tracking down to 400 m (1,300#39;)
• Medium frequency: 60-100 kHz
• 57° to 73° beamwidth (port/starboard)
• 16° average fore/aft
• 40 kHz of total bandwidth from one transducer
• Medium frequency for superior mid-depth performance and excellent fish-target separation
• Bronze housing for use on stepped, planing or displacement hull
• Low-profile, thru-hull housing yields good resolution at speed when installed properly
• Exclusive Xducer ID® technology

AIRMAR’s innovative transducer designs have revolutionized the fishing world, and they continue to do so with the NEW Chirp-ready B175 Medium Ultra-Wide (MW) Tilted Element™ Thru-hull transducer. The B175MW takes transducer design and performance to a whole new level by using medium frequency (60-100 kHz) with an incredible ultra-wide beamwidth ranging from 57-73° port-starboard to 16° average fore-aft. Maximum coverage under the boat is achieved with this medium-frequency transducer, serving anglers who target pelagic species in the upper water column.

Airmar’s new Medium Ultra-Wide models are perfect for seeking deeper species with a frequency band from 60-100 kHz. When paired with our other popular models such as the B275LHW, provides the angler with a broad set of frequencies (Low, Medium-Wide, High-Wide) to interrogate targets from deep to shallow.

******************************************************************
As of 05/29/2024 the bare wire only works with the Garmin GSD28
******************************************************************


Specifications


Power Rating	1 kW
Housing	Bronze
Functions	Depth, Temperature
Hull Material	Fiberglass or wood
Max Vessel LOA	Up to 11 m (36')
Hole Size	95 mm (3-3/4")
Mounting Style	Tilted Element Thru-Hull
Acoustic Window	Urethane
Cable-Length	9 m (30')
Max Depth	400 m (1300')
Medium Frequency	60-100 kHz
Medium Frequency Beamwidth	57° to 73° (Port/Starboard) X 16° average (Fore/Aft)
Water Temperature	-10° to 40°C (14° to 104°F)
Cable End	Mix-N-Match


What's in the Box:
• MMC-0 Bare Wire Mix-n-Match Cable
• B175C-0-MW-MM 0d Tilt Medium CHIRP Ultra Wide

The Airmar B175C-0-MW-0 is a 1 kW thru-hull transducer designed for marine applications, providing depth and water temperature data. This unit features a fixed 0-degree tilted element, suitable for hulls with a deadrise between 0 and 7 degrees. It operates at a medium CHIRP frequency range of 60-100 kHz, offering 40 kHz of total bandwidth. The transducer delivers an ultra-wide beamwidth, ranging from 57 to 73 degrees port/starboard and an average of 16 degrees fore/aft, which can enhance target separation in the mid-depth water column. Constructed with a bronze housing, it is compatible with fiberglass or wood hulls up to 11 meters (36 feet) LOA. Depth tracking is effective down to 400 meters (1,300 feet). The low-profile design aims to maintain resolution at speed. This product is intended for IT and marine professionals requiring reliable underwater data acquisition for navigation or fish-finding systems.
