SKU: S6RXJ5L7YZ |  Mfg. Part: B16  | UPC: 859300007086  |
 3 Reviews  |     Share

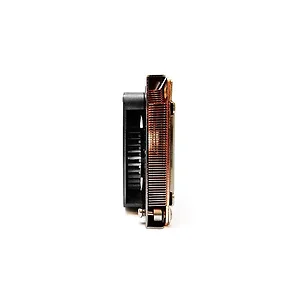

B16 - Dynatron 1U Server CPU Fan for Intel Xeon Processors

Special Order
Ships in 1-2 weeks
Condition: New

$67.97  $91.76
Need 10+? Request a volume quote
 Free Shipping for this Item

Product Overview

Optimize the cooling performance of your Intel Xeon server with the Dynatron B16 1U Server CPU Fan. Designed specifically for the Intel FCLGA3647 socket, this fan features a robust copper1100 heatsink with a vapor chamber base, ensuring efficient heat dissipation for high-performance processors.

With adjustable fan speeds and a durable double ball bearing system, the Dynatron B16 delivers reliable operation while maintaining low noise levels, making it an excellent choice for server environments.

Technical Specifications

Specifications

  • CPU Support: Intel Xeon Platinum/Gold Family Processor (Skylake architecture)
  • CPU Socket: FCLGA3647 Narrow ILM
  • Form Factor: 1U Server and UP
  • Material: Copper1100 Heatsink with Vapor Chamber Base
  • Fan Dimensions: 80 x 13 mm
  • Speed Range:
    • 20% Duty Cycle: 1500 ± 200 RPM
    • 50% Duty Cycle: 4000 ± 10% RPM
    • 100% Duty Cycle: 8000 ± 10% RPM
  • Rated Voltage: 12V
  • Bearing Type: Double Ball Bearing
  • Power Consumption:
    • 20% Duty Cycle: 1.44 W
    • 50% Duty Cycle: 4.80 W
    • 100% Duty Cycle: 19.20 W
  • Air Flow Rates:
    • 20% Duty Cycle: 4.3 CFM
    • 50% Duty Cycle: 11.6 CFM
    • 100% Duty Cycle: 22.8 CFM
  • Noise Levels:
    • 20% Duty Cycle: 25.6 dBA
    • 50% Duty Cycle: 46.9 dBA
    • 100% Duty Cycle: 62.0 dBA
  • Air Pressure:
    • 20% Duty Cycle: 3.0 mm-H2O
    • 50% Duty Cycle: 21.0 mm-H2O
    • 100% Duty Cycle: 83.8 mm-H2O
  • Lead Wire Pin Out:
    • Pin1: (-)
    • Pin2: (+)
    • Pin3: Techometer/Signal output
    • Pin4: PWM
  • Dimensions: 108.0 x 81.0 x 28.0 mm
  • Weight: 500.0 g
  • RoHS Compliant: Yes

Product Details

  • Manufacturer:
  • Model Number:
  • ASIN:
  • UPC:
  • Condition:
  • Weight:
  • Dimensions:
  • Updated:
  • Added:
  • Dynatron
  • B16
  • B079YLHB1R
  • 859300007086
  • New
  • 1.2 lbs
  • 5 X 5 X 5
  • Jun 08, 2026
  • Jul 23, 2019
Product Identifiers: Brand: Dynatron • Part #: B16 • UPC: 859300007086 • ASIN: B079YLHB1R • Category: CPU Fans & Heat Sinks
