SKU: AFR5EVIA6M |  Mfg. Part: B13  | UPC: 855700016123  |
 3 Reviews  |     Share

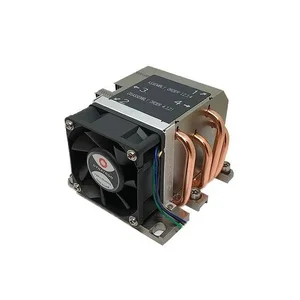

Dynatron B13 Fan B13 Intel Socket FCLGA3647 2U Aluminum heatsink with heatpipe embedded Brown box

Out of Stock
Condition: New

$59.42  $80.22
 Free Shipping for this Item

Product Overview

FeaturesAluminum heatsink with heatpipe embedded2 ball bearingRoHS compliantSpecificationsCPU Socket: FCLGA3647Solution: 2U Server and UpMaterial: Aluminum Heatsink with Heatpipe EmbeddedFan Dimension: 60.0 x 60.0 x 25.0 mmSpeed Duty Cycle 20%: 1400 ± 200 RPMSpeed Duty Cycle 50%: 3400 ± 10% RPMSpeed Duty Cycle 100%: 7000 ± 10% RPMRated Voltage: 12VBearing: 2 Ball BearingPower Duty Cycle 20%: 0.90 WPower Duty Cycle 50%: 2.04 WPower Duty Cycle 100%: 5.40 WAir Flow Duty Cycle 20%: 8.12 CFMAir Flow Duty Cycle 50%: 20.31 CFMAir Flow Duty Cycle 100%: 40.60 CFMNoise Level Duty Cycle 20%: 16 dBANoise Level Duty Cycle 50%: 35 dBANoise Level Duty Cycle 100%: 50 dBAAir Pressure Duty Cycle 20%: 0.58mm-H2OAir Pressure Duty Cycle 50%: 3.65 mm-H2OAir Pressure Duty Cycle 100%: 14.58 mm-H2OThermal Grease: Shin-Etsu 7762 Pre-printedDimension: 108 x 80 x 66 mmWeight: 0.95 lbs- SKU: MBPSCAFBAG5886

Technical Specifications

CPU Support
Intel CPU Socket
FCLGA3647 Solution
2U Server and Up Material
Aluminum Heatsink with Heatpipe Embedded Fan Dimension
60 x 60 x 25 mm Speed
At Duty Cycle 20%: 1400 +/- 200 RPM
At Duty Cycle 3400 +/- 10% RPM
At Duty Cycle 100%: 7000 +/- 10% RPM Rated Voltage
12V Bearing
2 Ball Bearing Power
At Duty Cycle 20%: 0.90 W
At Duty Cycle 50%: 2.04 W
At Duty Cycle 100%: 5.40 W Air Flow
At Duty Cycle 20%: 8.12 CFM
At Duty Cycle 50%: 20.31 CFM
At Duty Cycle 100%: 40.60 CFM Noise Level
At Duty Cycle 20%: 16 dBA
At Duty Cycle 50%: 35 dBA
At Duty Cycle 100%: 50 dBA Air Pressure
At Duty Cycle 20%: 0.58mm-H2O
At Duty Cycle 50%: 3.65 mm-H2O
At Duty Cycle 100%: 14.58 mm-H2O Lead Wire Pin Out
Lead Wire Pin Out
Pin1- (-)
Pin2- (+)
Pin3- (Techometer/Signal output)
Pin4- (PWM) Thermal Grease
Shin-Etsu 7762 Pre-printed Item Dimension (L inchxW inchxH inch)
4 x 4 x 3

Weight
1.00 lb

Warranty Information
1 Year

Product Details

  • Manufacturer:
  • Model Number:
  • ASIN:
  • UPC:
  • Condition:
  • Weight:
  • Dimensions:
  • Updated:
  • Added:
  • Dynatron
  • B13
  • B0771D99WP
  • 855700016123
  • New
  • 1 lbs
  • 4 X 3 X 3
  • Mar 21, 2026
  • Oct 25, 2017
Product Identifiers: Brand: Dynatron • Part #: B13 • UPC: 855700016123 • ASIN: B0771D99WP • Category: CPU Fans & Heat Sinks
