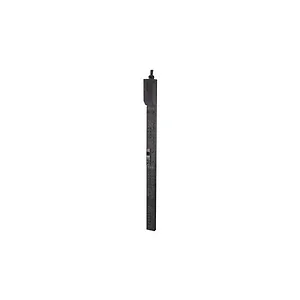

APC Switched Rack Power Distribution Units (PDUs) enable advanced, user-customizable power control and active monitoring. Remote outlet level controls allow power on/off functionality for power recycling to remotely reboot equipment and restrict unauthorized use of individual outlets. Power sequencing delays allow users to define the order in which to power up or down attached equipment. Avoid circuit overload during power recovery and extend uptime of critical equipment by prioritizing the load shedding. Current metering provides real-time remote monitoring of connected loads. Switched Rack PDUs include real power monitoring, a temperature/humidity sensor port, locking IEC receptacles, and low profile circuit breakers. User-defined alarms warn of potential circuit overloads before critical IT failures occur. Users can access, configure, and control Switched Rack PDUs through secure Web, SNMP, or Telnet Interfaces and is complimented by APC Centralized Management platforms using InfraStruxure Central, Capacity Manager and Change Manager.
Technical Specifications
Output Nominal Output Voltage 208V Overload Protection Yes Maximum Total Current Draw 48 Output Connections (12) IEC 320 C19 (Battery Backup) (20) IEC 320 C13 (Battery Backup) Input Nominal Input Voltage 208V 3PH Input frequency 50/60 Hz Input Connections IEC 309 60A 3P+PE Cord Length 6ft (1.83meters) Number of Power Cords 1 Load Capacity 17300VA Maximum Input Current 60A Maximum Line Current 48A Regulatory Derated Input Current (North America) 48A Physical Color Black Environmental Operating Temperature 32 - 113 oF (0 - 45 oC) Operating Relative Humidity 5 - 95 % Operating Elevation 0-10000ft (0-3000meters) Storage Temperature -25 - 65 oC Storage Relative Humidity 5 - 95 % Storage Elevation 0-50000ft (0-15000meters) Conformance Approvals cUL Listed, EN 55022 Class A, EN 55024, EN 61000-3-2, EN 61000-3-3, FCC Part 15 Class A, ICES-003, UL Listed, VCCI Class A Sustainable Offer Status RoHS Compliant REACH REACH: Contains No SVHCs PEP Available in Documentation tab EOLI Available in Documentation tab Battery Directive Compliant Item Dimension ( L inchxW inchxH inch) 5 x 85 x 9 Weight 44 lb Warranty Information 2 years repair or replace
Product Details
Manufacturer:
Model Number:
ASIN:
UPC:
Condition:
Weight:
Dimensions:
Updated:
Added:
Country of Origin:
APC - Schneider Electric
AP8966
B01N2G40IB
731304330899
New
35 lbs
2 X 72 X 2
Mar 16, 2026
Sep 03, 2016
United States
Product Identifiers:
Brand: Apc - Schneider Electric •
Part #: AP8966 • UPC: 731304330899 • ASIN: B01N2G40IB • Category: Distribution Unit
