3 Available
Condition: New

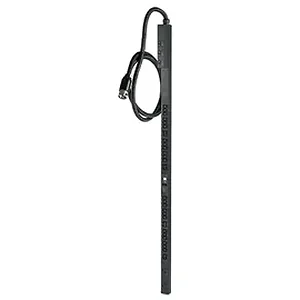

The APC Rack PDU, Metered, ZeroU, AP7899B, is a power distribution unit designed for IT environments requiring precise power monitoring and reliable power delivery. This PDU operates on a 208V 3-phase input, providing a total load capacity of 14.4kVA. It features a comprehensive set of output connections, including 24 IEC 320 C13 outlets, 4 IEC 320 C19 outlets, and 2 NEMA L6-30R outlets, all with battery backup capability. Integrated overload protection helps prevent circuit overloads. The unit is suitable for rack deployments where space optimization is critical, utilizing a ZeroU form factor. It is intended for IT professionals managing server racks, network closets, or data centers who need to distribute 208V power to multiple devices while monitoring power consumption. The PDU comes with a single 10-foot power cord and is cUL Listed and UL Listed, ensuring compliance with relevant safety standards.
Output
Nominal Output Voltage:208V
Overload Protection:Yes
Maximum Total Current Draw:40
Output Connections:(4) IEC 320 C19 (Battery Backup)
(2) NEMA L6-30R (Battery Backup)
(24) IEC 320 C13 (Battery Backup)
Input
Nominal Input Voltage:208V 3PH
Input frequency:50/60 Hz
Input Connections:CS8365
Cord Length:10ft ( 3.05meters )
Number of Power Cords:1
Load Capacity:14400VA
Maximum Input Current:50A
Regulatory Derated Input Current (North America):40A
Physical
C Bolor:Black
Environmental
Berating Environment:23 - 113 o F ( -5 - 45 o C )
Operating Relative Humidity:5 - 95 %Operating Elevation:0-10000ft ( 0-3000meters )
Storage Temperature:-25 - 65 o C
Storage Relative Humidity:5 - 95 %
Storage Elevation:0-50000ft ( 0-15000meters )
Conformance
Approvals:cUL Listed, CSA, FCC Part 15 Class A, ICES-003, Industry Canada, METI Denan, UL 60950, UL Listed Sustainable Offer Status
RoHS:Compliant
REACH:REACH: Contains No SVHCs
Battery Directive:Compliant
Battery Notes:ts_Battery_Notes
Item Dimension (L inchxW inchxH inch)
81 x 13 x 4 Weight
31.50lb Warranty Information
2 years repair or replace
The APC Rack PDU requires a 208V 3-phase input connection with a CS8365 input plug. It has a maximum input current of 50A, with a regulatory derated input current of 40A for North America.
This PDU provides 24 IEC 320 C13 outlets, 4 IEC 320 C19 outlets, and 2 NEMA L6-30R outlets. All listed output connections are specified with battery backup capability.
The PDU has a load capacity of 14.4kVA (14400VA) and a nominal output voltage of 208V. It is designed to handle a maximum total current draw of 40A.
The unit includes one 10-foot (3.05 meters) power cord. The PDU itself is a ZeroU form factor, colored black, and weighs 31.50 lbs.
AP7899B - Apc - Schneider Electric RACK PDU, METERED, ZEROU, 14.4KW, 208V, (24)C13, (4)C19, (2)L6-30R;10 CORD
