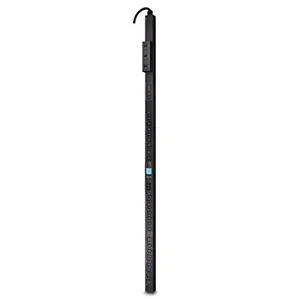

The APC AP8965Rack PDU 2G Switched Zero-U is a high-end power distribution unit designed for mission-critical racks and data-centre installations. With a 30 A, 208 V (three-phase) input and a capacity of approximately 8.6 kW, this unit features 24 IEC outlets (21 × C13 + 3 × C19).
The “Switched” functionality enables remote control of individual outlets, allowing power to be turned on/off via a network, SNMP, or web interface. The Zero-U design means the unit mounts vertically along the rear or side of standard 19″ racks, maximizing usable rack space.
This Rack PDU supports real-time monitoring of current draw, user-customizable alarms for overload conditions, and secure remote access for managing connected equipment.
The APC AP8965 Rack PDU 2G Switched Zero-U is a power distribution unit designed for IT environments requiring precise power management. This unit provides a 208V, 30A (three-phase) input, delivering approximately 8.6 kW of power across 24 IEC outlets (21 x C13, 3 x C19). Its "Switched" functionality allows for remote control of individual outlets via network, SNMP, or web interface, enabling administrators to power cycle connected equipment without physical access. The Zero-U design facilitates vertical mounting within standard 19-inch racks, preserving valuable rack space for other hardware. It supports real-time current draw monitoring and offers user-customizable alarms for overload conditions. This PDU is suitable for mission-critical racks and data center installations where remote power control and detailed power monitoring are necessary for operational efficiency and problem resolution.
Output:
- Nominal Output Voltage: 208V
- Maximum Total Current Draw Per Phase: 30A
- Output Connectors: (21) x IEC 320 C13 / (3) x IEC 320 C19
- Overload Protection: Yes Input:
- Nominal Input Voltage: 208V 3PH
- Input Frequency: 50/60 Hz
- Regulatory Derated Input Current (North America): 24A
- Input Connections: NEMA L21-30P
- Cord Length: 6 Feet (1.83 Meters)
- Number of Power Cords: 1
- Maximum Line Current Per Phase: 30A
- Maximum Input Current Per Phase: 30A Environmental:
- Operating Environment: 23 113 F (-5 45 C)
- Operating Relative Humidity: 5-95%
- Operating Elevation: 0 10000 Feet (0-3000 Meters)
- Storage Temperature: -13 149 F (-25 -65 C)
- Storage Relative Humidity: 5 -95%
Storage Elevation: 0 50000 Feet (0 15000 Meters) Conformance:
- Regulatory Approvals: cUL Listed, FCC Part 15 Class A, ICES-003, UL Listed, VCCI Class A Sustainable Offer Status:
- RoHS: Compliant
- REACH: REACH Contains No SVCHs
-Battery Directive: Compliant Color:
- Black Package Content:
- Installation Guide
- Rack Mounting Brackets
- Safety Guide
- Serial Configuration Cable Item Dimension (L"xW"xH")
4.9 x 80.3 x 6.5
Weight
15.40 lb
Warranty Information
2 Years
This PDU requires a 208V three-phase input with a NEMA L21-30P connection. The maximum input current per phase is 30A.
The PDU features 24 output connectors, consisting of 21 IEC 320 C13 outlets and 3 IEC 320 C19 outlets. The nominal output voltage is 208V.
The package includes the PDU unit, an installation guide, rack mounting brackets, a safety guide, and a serial configuration cable.
Yes, the "Switched" functionality allows for remote control of individual outlets. Power can be turned on or off via a network, SNMP, or a web interface.
AP8965 - Apc - Schneider Electric RACK PDU 2G, SWITCHED, ZEROU
