AF45 - Uflex Usa Uflex 45° Adjustable Fitting f/Back of UP Series Helms ORB 6 to 3/8" COMP

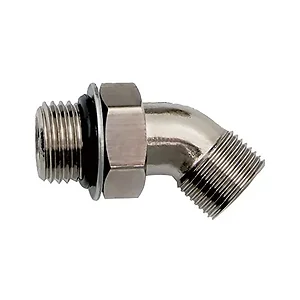

45° Adjustable Fitting for Back of UP Series Helms

Typical Application:

Fitting for the back of the UP series helms

Specifications:

• ORB, Size #6 to 3/8 COMP FITTING
• Helm Side = 9/16 - 18 UNF 2A
• Hose Side = 9/16 - 24 UNEF 2A

The Uflex 45� Adjustable Fitting (part number AF45) is designed for integration with Uflex UP Series helms. This component facilitates the connection between the helm and a hydraulic hose, providing a 45-degree angle for routing flexibility. It is suitable for IT environments or industrial applications requiring precise fluid transfer system assembly where space or existing infrastructure dictates a specific hose exit angle from the helm. The fitting addresses challenges in system layout by allowing for an adjustable connection point, which can simplify installation and maintenance of hydraulic steering or control systems. It is specified for an ORB, Size #6 to 3/8 COMP FITTING, with distinct threading for both the helm and hose sides to ensure secure connections.
