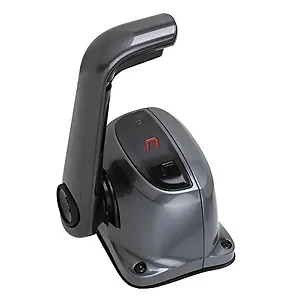

B501B/L - Uflex Usa Uflex Single Lever Top Mount Control w/Neutral Lock - No Trim Switch - Black

Single Lever Top Mount Control w/Neutral Lock - No Trim Switch - Black

In the twin engine installation a single switch will operate both trims. With a focus on efficiency these controls have been specifically designed to improve the functionality of control systems, making the boat easier to control. Single lever / dual action control to operate both with throttle and shift. Suitable for any type of boats with outboard, inboard or I/O power plants.

Features:

• Enables easy and safe shifting by preventing accidental gear engagement unless engine is idling
• Chrome plated high resistance ABS housing control with die cast chrome plated levers
• Push in button disengages shift for warm-up
• X12 neutral safety switch which prevents in-gear starting (optional)
• Exceeds EN ISO 11547 standards when X12 safety switch is installed

For use with all Ultraflex control cables except C4:

• C14 and MACH14 cables require no kit
• for C2, C8 and MACHZero cables the connection kit K59 - 40144C is included
• C5, C16 and MACH5 cables require K60 Kit - 40145E
• C36 and MACH36 cables require K62 Kit - 40157J
• C22 cable requires K61 Kit - 40146G

The Uflex Single Lever Top Mount Control, part number B501B/L, is a marine control switch designed for single-lever, dual-action operation of both throttle and shift. This unit is suitable for various boat types utilizing outboard, inboard, or I/O power plants. It features a neutral lock to prevent accidental gear engagement when the engine is not idling, enhancing operational safety. The control also includes a push-in button for disengaging the shift during warm-up procedures. Constructed with a chrome-plated high-resistance ABS housing and die-cast chrome-plated levers, it offers durability in marine environments. An optional X12 neutral safety switch can be installed to prevent in-gear starting, which, when present, allows the unit to exceed EN ISO 11547 standards. This control is intended for integration into existing Ultraflex control cable systems, with specific connection kits provided or required depending on the cable type.
