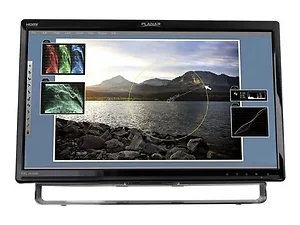

997-6399-00 - Planar LCD 997-6399-00 PXL2430MW 24inch DVI 1920x1080 1000:1 5ms Speaker Black Retail

Product Name
PXL2430MW

Planar Part Number
997-6399-00

Viewable Size
23.6" diagonal (20.52" horizontal x 11.54" vertical)

Aspect Ratio
16:9

Contrast Ratio (Typical)
1000:1 Viewing Angle (Typical)
170 Horizontal and 160 Vertical

Response Time (Typical)
5 ms

Brightness (Typical)
250 cd/m

Display Type
Edge-Lit LED LCD

Display Resolution
1920 x 1080 Tilt Range
0 to +20

Palette
16.7 million colors

Pixel Pitch
0.272 mm

Refresh Rate
56-75 Hz (60 Hz recommended)

Dimensions (W x H x D)
21.9" x 15.5" x 4.3" (555.8 mm x 393.6 mm x 108.0 mm) Dimensions without Stand
21.9" x 13.7" x 2.2" (555.8 mm x 346.8 mm x 56.1 mm)

Display Weight
With Stand: 12.6 lbs (5.7 kg) (net), Without Stand: 11.4 lbs (5.2 kg) (net), 16 lbs (7.3 kg) (shipping)

Video Inputs
Analog, DVI-D, HDMI (HDMI cable not included)

Audio Output
2W External Connections
D-sub 15-pin, DVI-D 24-pin, HDMI 19-pin, USB-B, Audio Port

Compatibility
Windows 7 only

Power Supply
Internal

Power Consumption
35W

Power Requirements
100-240 VAC, 50/60 Hz VESA Compatible/Location
Built-in 100 mm VESA, Back of monitor

Product Approvals
cTUVus, FCC-B, CE, RoHS

Service and Support
3-Year Customer First Warranty featuring FREE 2-Day Advance Replacement (US only) Options / Features
Optical Touch technology, multi -touch capability, compatible with Microsoft Windows 7 operating system, HID compliant - no drivers needed for touchscreen operation. Includes a built in stylus.

In the Box
PXL2430MW 23.6" Multi-Touch LED Monitor, Power Cord, VGA Cable, DVI Cable, USB Cable, Audio-In Cable, Users Guide Item Dimension (L"xW"xH"):
21.9 x 15.5 x 4.3

Weight:
20 lb

Warranty Information:
3-Year Customer First Warranty featuring FREE 2-Day Advance Replacement
