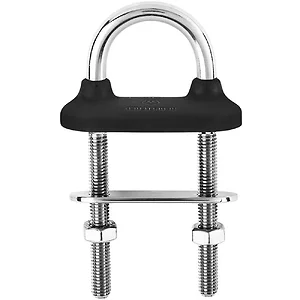

65351W - Wichard Marine Wichard Black Watertight U-Bolt - 10mm Diameter - 25/64" - 90mm Length - 3-35/64"

Black Watertight U-Bolt - 10mm Diameter - 25/64" - 90mm Length - 3-35/64"

Features:

• Fully drop-forged product with high-quality stainless steel
• Outstanding working and breaking loads
• Complete water-tightness thanks to the resistant rubber collar (black color)
• Easy installation (no need to use a waterproof sealant)
• Delivered with bolts and counter-plate
• Max tightening torque: 36 nm

Applications:

• Various fastening applications: shrouds, lifelines, blocks…

Specifications:

• Materials: 316L stainless steel grade
• Color: Black
• Working load: (lb) 7930 / (kg) 3600
• Breaking load: (lb) 15430 / (kg) 7000
• Weight: (lb) 0.483 / (g) 219

Dimensions:

• Length: (inch) 3 35/64" / (mm) 90
• A: (inch) 1 37/64" / (mm) 40
• B: (inch) 1 1/32" / (mm) 26
• C: (inch) 1 49/64" / (mm) 45
• D diameter: (inch) 25/64" / (mm) 10

Caption:

• Working Load (WL): For nautical applications
• Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5

*Sold as an Individual

The Wichard Black Watertight U-Bolt (part number 65351W) is a specialized fastening component designed for demanding environments requiring secure and watertight connections. Constructed from 316L stainless steel, this drop-forged U-bolt offers robust working and breaking loads, rated at 3600 kg (7930 lb) and 7000 kg (15430 lb) respectively. Its key feature is the integrated resistant black rubber collar, which ensures complete watertightness upon installation without the need for additional sealants. This simplifies deployment and reduces potential points of failure in moisture-prone applications. With a 10mm (25/64") diameter and 90mm (3-35/64") length, it is suitable for various fastening tasks, including securing shrouds, lifelines, and blocks. This product is intended for IT and facilities managers overseeing infrastructure in marine, outdoor, or other environments where corrosion resistance and water ingress prevention are critical for maintaining operational integrity.
