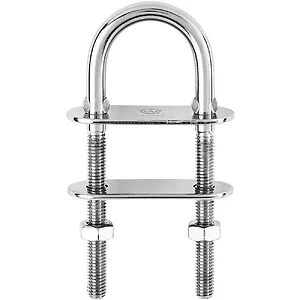

6526W - Wichard Marine Wichard U-Bolt Pad Eye - 12mm Diameter - 15/32" - 130mm Length - 5-1/8"

U-Bolt Pad Eye - 12mm Diameter - 15/32" - 130mm Length - 5-1/8"

Features:

• Entirely drop forged product with high-quality stainless steel
• Outstanding working and breaking loads
• For any fastening applications (shrouds, lifelines, blocks...)
• Delivered with bolts and counter-plate
• Max tightening torque: 60 Nm

Applications:

• Various fastening applications: shrouds, lifelines, blocks…

Specifications:

• Materials: 316L stainless steel grade
• Working load: (lb) 14100 / (kg) 6400
• Breaking load: (lb) 22040 / (kg) 10000
• Weight: (lb) 0.769 / (g) 349

Dimensions:

• A: (inch) 1 47/64" / (mm) 44
• B: (inch) 1 11/32" / (mm) 34
• C: (inch) 2 3/4" / (mm) 70
• D diameter: (inch) 15/32" / (mm) 12
• Length: (inch) 5 1/8" / (mm) 130

Caption:

• Working Load (WL): For nautical applications
• Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5

*Sold as an Individual

The Wichard U-Bolt Pad Eye, part number 6526W, is a drop-forged fastening component designed for demanding applications. Constructed from 316L stainless steel, it offers resistance to environmental factors and maintains performance under significant stress. This pad eye is suitable for various fastening needs, including shrouds, lifelines, and blocks, where secure attachment points are critical. It is engineered to provide a working load of 6400 kg (14100 lb) and a breaking load of 10000 kg (22040 lb). The unit features a 12mm (15/32") diameter and a 130mm (5-1/8") length. It is supplied with the necessary bolts and a counter-plate for installation, with a maximum tightening torque of 60 Nm. This product is intended for professionals requiring robust and reliable fastening solutions in environments where structural integrity is paramount.
