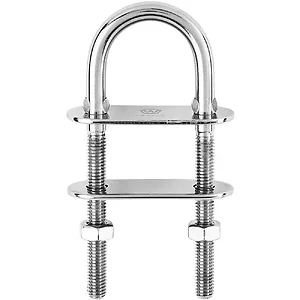

6514W - Wichard Marine Wichard U-Bolt Pad Eye - 8mm Diameter - 5/16" - 80mm Length - 3-5/32"

U-Bolt Pad Eye - 8mm Diameter - 5/16" - 80mm Length - 3-5/32"

Features:

• Fully drop forged product with high-quality stainless steel
• Outstanding working and breaking loads
• For any kind of fastening applications (shrouds, lifelines, blocks...)
• Delivered with bolts and counter-plate
• Max tightening torque: 18 mm

Applications:

• Various fastening applications: shrouds, lifelines, blocks…

Specifications:

• Materials: 316L stainless steel grade
• Working load: (lb) 5290 / (kg) 2400
• Breaking load: (lb) 10580 / (kg) 4800
• Weight: (lb) 0.251 / (g) 114

Dimensions:

• A: (inch) 1 27/64" / (mm) 36
• B: (inch) 1 3/16" / (mm) 30
• C: (inch) 1 37/64" / (mm) 40
• D diameter: (inch) 5/16" / (mm) 8
• Length: (inch) 3 5/32" / (mm) 80

Caption:

• Working Load (WL): For nautical applications
• Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5

*Sold as an Individual

The Wichard U-Bolt Pad Eye, part number 6514W, is a fastening component designed for demanding marine and industrial applications. Constructed from fully drop-forged 316L stainless steel, this pad eye offers high working and breaking loads, rated at 2400 kg (5290 lb) and 4800 kg (10580 lb) respectively. It features an 8mm (5/16") diameter and an 80mm (3-5/32") length. This product is suitable for various fastening requirements, including shrouds, lifelines, and blocks. It addresses the need for secure, durable attachment points in environments where corrosion resistance and load-bearing capacity are critical. The unit comes complete with bolts and a counter-plate, facilitating immediate installation. Its robust construction ensures reliable performance for professionals requiring dependable hardware.
