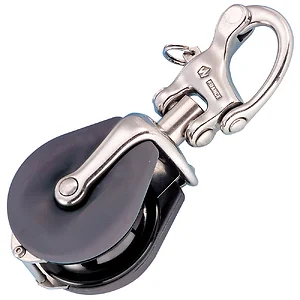

35500W - Wichard Marine Wichard 18mm Snatch Block w/ Shackle

Wichard Snatch Block with Snap Shackle - Maximum Rope Size 18mm (23/32")

This snatch block is designed for easy rigging and secure usage, accommodating a maximum rope size of 18mm (23/32"). Featuring a robust snap shackle mechanism, it ensures free rotation while maintaining strength and reliability.

Applications:

• Effective for changing sheets
• Used as spinnaker sheet deflector blocks

Materials:

• HR 17.4 PH forged stainless steel arm
• Elastomer molded cheeks for shock and scratch resistance
• Composite sheave for durability

Specifications:

• Rope size: 18mm (23/32")
• Length: 6 7/64" (155mm)
• Width: 2 21/64" (59mm)
• Thickness: 1 59/64" (49mm)
• Working Load: 2640 lb (1200 kg)
• Breaking Load: 5510 lb (2500 kg)
• Weight: 0.913 lb (414 g)

Important Notes:

• Working Load (WL): For nautical applications
• Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5

*Sold as an Individual

The Wichard 18mm Snatch Block with Shackle, part number 35500W, is a rigging component designed for applications requiring a change in rope direction or the use of deflector blocks. This snatch block accommodates a maximum rope size of 18mm (23/32"). It features a snap shackle mechanism that allows for free rotation and secure attachment. The construction includes an HR 17.4 PH forged stainless steel arm, elastomer molded cheeks for shock and scratch resistance, and a composite sheave for durability. With a working load of 2640 lb (1200 kg) and a breaking load of 5510 lb (2500 kg), this block is suitable for managing loads within its specified limits. Its design facilitates easy opening via a plunger pin, making it practical for quick rigging adjustments.
