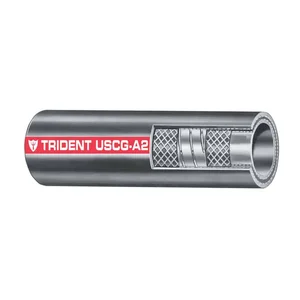

327-1126-FT - Trident Marine 1/2" A2 Fuel Fill Hose - Per Foot

1-1/2" A2 Fuel Fill Hose - Sold by the Foot

The Trident 1-1/2" ID A2 fuel fill hose is designed for use with gasoline (including ethanol blends) and diesel (including biodiesel blends). This high-quality hose is perfect for marine applications.

Key Features:

• Sold by the foot for custom lengths
• Constructed with a premium fuel, fire, and age-resistant formulation
• Exceptional resistance to aging, fire, heat, cold, and ozone
• Superior flexibility allows for easy installation

Applications:

• Ideal for marine fuel fill and vent systems
• Approved for all marine fuel types, including gasoline, alcohol blends, diesel, and biodiesel

Construction Details:

• Tube & Cover: NBR / Neoprene
• Reinforcement: High tenacity polyester with 2 spirals and spring steel helix
• Temperature Range: -20°F to 212°F (-20°C to 100°C)

Specifications:

• Inner Diameter: 1-1/2" (38mm)
• Outer Diameter: 2" (51mm)
• Wall Thickness: 0.25" (6.4mm)
• Working Pressure: 60 psi (0.41 Mpa)
• Bend Radius: 5.5" (140mm)

*The #327 series exceeds ABYC H-24 & H-33, SAE J1527, ISO 7840, & USCG Type A2; it is NMMA Type Accepted, CE certified, and Lloyds Registry Type Approved.

The Trident Marine 1-1/2" A2 Fuel Fill Hose, part number 327-1126-FT, is a specialized component for marine fuel systems. This hose is designed for IT and procurement professionals managing hardware for marine applications, specifically those requiring reliable fuel transfer solutions. It is suitable for both fuel fill and vent systems on boats. The hose is constructed with NBR/Neoprene for the tube and cover, reinforced with high tenacity polyester and a spring steel helix, providing durability and resistance to various environmental factors. It addresses the need for a robust hose that can handle gasoline (including ethanol blends) and diesel (including biodiesel blends) across a temperature range of -20�F to 212�F. Its superior flexibility aids in installation, and it is sold by the foot to accommodate custom length requirements, minimizing waste and ensuring precise fitment for specific projects.
