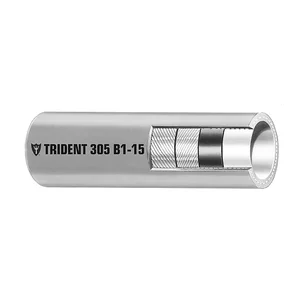

305-0386-FT - Trident Marine Trident 3/8" Outboard Fuel Line Hose - EPA Compliant - Gray

Trident 3/8" Outboard Fuel Line Hose - EPA Compliant - Gray

This 3/8" fuel line hose is engineered with advanced fuel and age-resistant materials. Featuring a unique "Barrier Liner" on the inner surface, it prevents direct fuel contact with rubber, significantly minimizing fuel permeation while protecting against ethanol degradation. This is crucial as higher ethanol blends (E-15) become more common at gas stations.

Key Features:

• Sold by the foot
• Exceptional resistance to fuel permeation, aging, heat, cold, and ozone
• Excellent flexibility and fitting retention
• Compatible with gasoline (including ethanol blends up to E85) and diesel (including biodiesel blends up to 100%)
• EPA Certified and has CARB Executive Order for low permeation Type B1-15

Applications:

• Ideal for marine fuel distribution, return, vent, and transfer
• Suitable for all marine fuels, including gasoline, alcohol blends (CE-10), diesel, and biodiesel

Construction:

• Inner Tube: Fluoroplastic Internal Barrier
• Outer Cover: Gray CPE Rubber
• Reinforcement: 2-Spiral Polyester Plies
• Temperature Range: -20°F to 212°F (-28°C to 100°C)

Specifications:

• Inner Diameter: 3/8" (9.50 mm)
• Outer Diameter: 0.588" (14.9 mm)
• Burst Pressure: 175 psi (1.21 mpa)
• Working Pressure: 35 psi (0.24 mpa)
• Bend Radius: 4" (101.6 mm)
• Weight: 10.5 lb/100 ft. (0.156 kg/m)
• Permeation Rate: 5.0 (Standard is 15g/m²/24hrs CE10)

The Trident 3/8" Outboard Fuel Line Hose, part number 305-0386-FT, is an EPA-compliant fuel line designed for marine applications. This hose features a fluoroplastic internal barrier to prevent direct fuel contact with the rubber, which minimizes fuel permeation and protects against ethanol degradation, including blends up to E85. It is constructed with a gray CPE rubber outer cover and 2-spiral polyester plies reinforcement, offering resistance to aging, heat, cold, and ozone.

This product is suitable for marine fuel distribution, return, vent, and transfer lines, accommodating all marine fuels such as gasoline, alcohol blends (CE-10), diesel, and biodiesel (up to 100%). It is sold by the foot, allowing for custom lengths to meet specific installation requirements. With a working pressure of 35 psi and a temperature range of -20�F to 212�F, this hose provides a reliable solution for maintaining fuel system integrity in marine environments.
