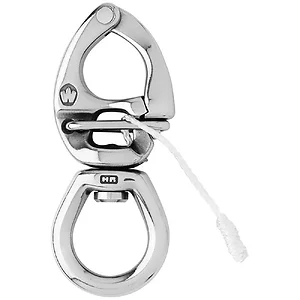

2777W - Wichard Marine Wichard HR Quick Release Snap Shackle With Large Bail -145mm Length - 5-45/64"

HR Quick Release Snap Shackle With Large Bail -145mm Length - 5-45/64"

Features:

• HR forged (17.4 PH) quick-release snap shackle with large bail
• The opening is made by pulling the lanyard
• Perfect to attach several lines (spinnaker sheets...)
• Outstanding working and breaking loads
• Free rotation of the snap shackle thanks to the swivel

Applications:

• For spinnaker operations
• Perfect to attach several lines: spinnaker sheets...

Specifications:

• Materials: HR 17.4 PH stainless steel grade
• Working load: (lb) 6170 / (kg) 2800
• Breaking load: (lb) 13880 / (kg) 6300
• Weight: (lb) 0.873 / (g) 396

Dimensions:

• A: (inch) 1 3/16" / (mm) 30
• B: (inch) 1 25/64" / (mm) 35.5
• Length: (inch) 5 45/64" / (mm) 145

Caption:

• Working Load (WL): For nautical applications
• Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5
• High Resistance (HR)

*Sold as an Individual

The Wichard HR Quick Release Snap Shackle with Large Bail (part number 2777W) is a specialized lifting shackle designed for demanding nautical applications. Constructed from HR 17.4 PH stainless steel, this forged shackle offers a working load of 6170 lb (2800 kg) and a breaking load of 13880 lb (6300 kg). Its quick-release mechanism, activated by pulling a lanyard, facilitates rapid attachment and detachment of lines. The large bail design accommodates multiple lines, making it suitable for operations involving spinnaker sheets. A swivel feature allows for free rotation, preventing line twisting during use. This component is intended for professionals requiring a high-resistance, reliable connection point for critical marine rigging tasks where quick release and robust load capacity are essential.
