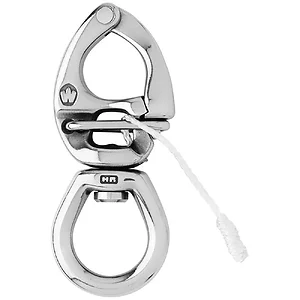

2773W - Wichard Marine Wichard HR Quick Release Snap Shackle With Large Bail - 80mm Length - 3-5/32"

HR Quick Release Snap Shackle With Large Bail - 80mm Length - 3-5/32"

Features:

• HR forged (17.4 PH) quick-release snap shackle with large bail
• The opening is made by pulling the lanyard
• Perfect to attach several lines (spinnaker sheets...)
• Outstanding working and breaking loads
• Free rotation of the snap shackle thanks to the swivel

Applications:

• For spinnaker operations
• Perfect to attach several lines: spinnaker sheets...

Specifications:

• Materials: HR 17.4 PH stainless steel grade
• Working load: (lb) 1940 / (kg) 880
• Breaking load: (lb) 2860 / (kg) 1300
• Weight: (lb) 0.119 / (g) 54

Dimensions:

• A: (inch) 35/64" / (mm) 14
• B: (inch) 3/4" / (mm) 19
• Length: (inch) 3 5/32" / (mm) 80

Caption:

• Working Load (WL): For nautical applications
• Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5
• High Resistance (HR)

*Sold as an Individual

The Wichard HR Quick Release Snap Shackle With Large Bail (part number 2773W) is a specialized lifting shackle designed for demanding applications requiring efficient line management. Constructed from HR forged 17.4 PH stainless steel, this 80mm shackle offers both high resistance and durability. Its quick-release mechanism, activated by pulling a lanyard, facilitates rapid attachment and detachment of lines. The large bail is suitable for securing multiple lines, such as spinnaker sheets, and the integrated swivel ensures free rotation of the shackle, preventing tangles and improving operational fluidity. With a working load of 1940 lb (880 kg) and a breaking load of 2860 lb (1300 kg), this component is engineered for reliability in nautical environments, particularly for spinnaker operations. It addresses the need for a robust, easy-to-operate shackle where secure and quick line handling is critical.
