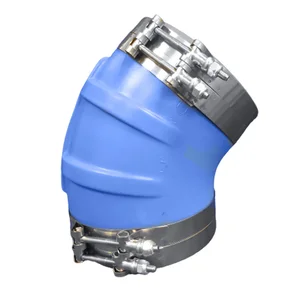

240V6000-S - Trident Marine 6" ID 45-Degree Blue Silicone Exhaust Elbow

6" ID 45-Degree Blue Silicone Molded Wet Exhaust Elbow with 4 T-Bolt Clamps

Trident silicone-blend rubber marine wet exhaust connections. They are molded in very high-temperature blue silicone EPDM blended rubber with a smooth bore and cover; except elbows of 6" I.D. or larger have molded reinforcing ribs on the outside.

Features:

• Four stainless steel t-bolt clamps
• Very high temp silicone/EDPM blend rubber - molded
• This elbow has excellent resistance to ozone, salt water, diesel fumes, splash, cold, heat, and aging
• Exceeds (SAE J2006-R1, and ABYC & NMMA P-1) exhaust standards
• Blue very high-temperature silicone blended with EDPM rubber at 350°F (177°C) max continuous

Construction:

• Color: Blue
• Reinforcement: Reinforcing ribs on 6” I.D. and above
• Temperature Range: up to 350°F (177°C)

Specifications:

• Inner Diameter: (inch) 6” / 152.4 mm
• A: (inch) 2” / (mm) 5.1
• B: (inch) 2” / (mm) 5.1
• C: (inch) 6.5” / (mm) 16.5
• R: (inch) 1.75” / (mm) 4.5
• W: (inch) 0.25" / (mm) 6.4
• Elbow Degree: 45 degrees

The Trident Marine 6" ID 45-Degree Blue Silicone Exhaust Elbow is a molded wet exhaust connection designed for marine applications. This component, part number 240V6000-S/S, is constructed from a high-temperature silicone EPDM blended rubber, capable of withstanding continuous temperatures up to 350�F (177�C). It features a 6-inch inner diameter and a 45-degree bend, making it suitable for routing exhaust systems in confined spaces or around obstacles. The elbow includes molded reinforcing ribs on the exterior for enhanced durability and comes with four stainless steel T-bolt clamps for secure installation. This product is engineered to resist common marine environmental factors such as ozone, saltwater, diesel fumes, and general aging, and it meets SAE J2006-R1, ABYC, and NMMA P-1 exhaust standards.
