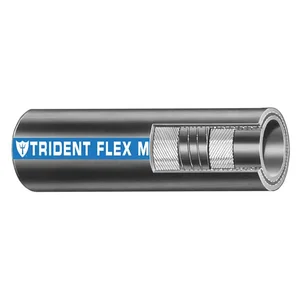

100-0346-FT - Trident Marine 3/4" Black Flex Wet Exhaust Hose - Sold by Foot

Trident Marine 3/4" Black Flex Wet Exhaust Hose - Sold by the Foot

This Flex wet exhaust hose from Trident is designed for longer bent connections in marine applications. It is ideal for engine intake, critical water, drain, scupper bilge, and sanitation uses. This hose resists heat, ozone, exhaust, panting, and collapse, making it suitable for demanding environments. Constructed with black high-temp EDPM rubber, it can withstand temperatures up to 250°F (121°C).

Features:

• Sold by the foot for custom length options
• Extra heavy-duty tube and cover with wire helix for enhanced flexibility and bend radius
• Resists heat, ozone, exhaust, sanitation chemicals, panting, and collapse
• Complies with SAE J2006-R2, ABYC & NMMA P-1 exhaust standards, and is Lloyd’s Registry Type Approved

Applications:

• Designed for longer bent connections in marine environments
• Suitable for engine intake, critical water discharge, bilge systems, and sanitation

Construction Details:

• Tube & Cover: Made of high temp EDPM rubber
• Color: Black with a distinctive blue stripe
• Reinforcement: Multi-ply, high-tenacity polyester with a steel helix
• Temperature Range: Max of 250°F (121°C)

Specifications:

• Inner Diameter: 3/4" (20 mm)
• Outer Diameter: 1.15" (29 mm)
• Working Pressure: 100 Psi (6.9 bar)
• Bend Radius: 1" (25 mm)
• Weight: 23 lbs/50 ft (10.3 kg/m)

*Note: Burst pressure is 4 times the working pressure.

The Trident Marine 3/4" Black Flex Wet Exhaust Hose is a specialized component for marine fluid transfer systems. This hose is engineered for longer bent connections within marine environments, addressing needs in engine intake, critical water discharge, bilge systems, and sanitation applications. Constructed from high-temperature EDPM rubber with multi-ply polyester reinforcement and a steel helix, it offers resistance to heat, ozone, exhaust, panting, and collapse. It maintains functionality in temperatures up to 250�F (121�C) and has a working pressure of 100 Psi. The design prioritizes durability and flexibility, featuring a 1" bend radius for installation in confined spaces. This product, identified by part number 100-0346-FT, is sold by the foot, allowing for custom length procurement to match specific project requirements. It complies with SAE J2006-R2, ABYC & NMMA P-1 exhaust standards, and is Lloyd�s Registry Type Approved, indicating suitability for demanding marine operational contexts.
