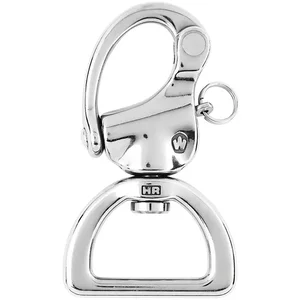

02376 - Wichard Marine Wichard HR Snap Shackle Webbing Swivel - 100mm Length - 3-15/16"

HR Snap Shackle Webbing Swivel - 100mm Length - 3-15/16"

Features:

• HR Forged snap shackle (Grade 17.4 PH stainless steel) with webbing swivel.
• Its flat design allows attaching a webbing
• Free rotation of the snap shackle thanks to the swivel eye
• The plunger pin is set captive into the hook and cannot become detached
• Excellent working and breaking loads
• Easy to open by pulling the plunger pin (possible to attach a lanyard)

Applications:

• Snap shackle applications
• Applications requiring a free rotation of the snap shackle (for a better sail orientation)

Specifications:

• Materials: HR 17.4 PH stainless steel grade
• Working load: (lb) 2820 / (kg) 1280
• Breaking load: (lb) 8480 / (kg) 3850

Dimensions:

• A: (inch) 53/64" / (mm) 21
• B: (inch) 1 37/64" / (mm) 40
• Length: (inch) 3 15/16" / (mm) 100

Caption:

• Working Load (WL): For nautical applications
• Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load.  WLL = Breaking load / 5
• High Resistance (HR)

*Sold as an Individual

The Wichard HR Snap Shackle with Swivel Eye is a specialized component designed for applications requiring secure attachment and free rotation. Constructed from Grade 17.4 PH stainless steel, it offers a working load of 2820 lb (1280 kg) and a breaking load of 8480 lb (3850 kg). Its 100mm length and flat design are suitable for integration with webbing, while the swivel eye facilitates unrestricted movement. This shackle is intended for demanding sailing and industrial environments where optimal orientation or articulation is critical. The captive plunger pin enhances safety by preventing unintentional detachment, and its design allows for quick operation when needed. This product, part number 02376, addresses the need for a durable, high-strength shackle that can accommodate dynamic loads and rotational requirements.
