01415 - Wichard Marine Wichard Captive Pin Long D Shackle - Diameter 10mm - 13/32"

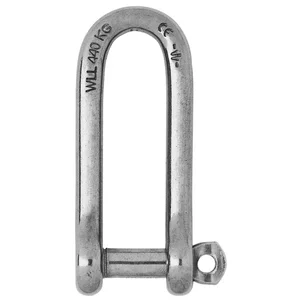

Captive Pin Long D Shackle - Diameter 10mm - 13/32"

Features:

• Captive pin long "D" shackle forged in grade 316L stainless steel
• The pin is connected to the body at all times even when opened
• The pin is locked into one of the indentations
• No risks of loosening due to vibrations
• Outstanding working and breaking loads

Applications:

• Standard applications of shackle requiring more length
• Attachment applications: blocks, head...

Specifications:

• Materials 316 stainless steel grade
• Working load (lb) 3350
• WLL (lb) 2290
• Breaking load (lb) 11460
• Weight (lb) 0.388

Dimensions (see 2nd image):

• A (inch) 3-5/64"
• B (inch) 25/32"
• C (inch) 7/16"
• D (inch) 53/64"
• D diameter (inch) 25/64"
• E (inch) 25/64"
• F (inch) 4-1/16"
• G (inch) 2-1/8"

The Wichard Captive Pin Long D Shackle (part number 01415) is a specialized fastening component designed for secure attachment in demanding environments. Forged from grade 316L stainless steel, this shackle features a captive pin mechanism, ensuring the pin remains connected to the body even when open. This design mitigates the risk of loosening due to vibrations, making it suitable for applications where consistent load bearing and security are critical. It is engineered for standard shackle applications requiring extended length, as well as attachment points for blocks and other components. With a working load limit (WLL) of 2290 lb and a breaking load of 11460 lb, this shackle is intended for IT professionals or facility managers who require robust and reliable hardware for securing equipment, cabling, or structural elements within data centers, server racks, or industrial settings where corrosion resistance and load capacity are paramount.
