01304 - Wichard Marine Wichard Self-Locking Allen Head Pin D Shackle - 8mm Diameter - 5/16"

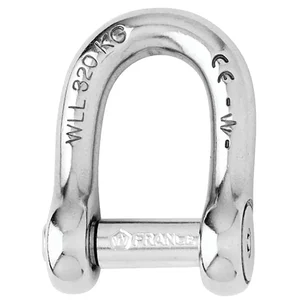

8mm Self-Locking D Shackle with Allen Head Pin

Features:

• Constructed from grade 316L stainless steel for durability
• Self-locking design prevents accidental opening
• Low-profile pin design minimizes snag hazards
• Vibration-resistant to ensure security during use
• Designed for outstanding working and breaking loads
• CE marked for compliance with safety standards

Applications:

• Connects chains and anchors securely
• Ideal for halyards, protecting sails from damage
• Optimized for use in tight spaces

Specifications:

• Materials: Grade 316 stainless steel
• Working Load: 2110 lb (960 kg)
• Working Load Limit (WLL): 1190 lb (540 kg)
• Breaking Load: 5950 lb (2700 kg)
• Weight: 0.117 lb (53 g)

Dimensions:

• A: 1 1/32" (26 mm)
• B: 5/8" (16 mm)
• C: 5/16" (8 mm)
• D: 5/8" (16 mm)
• D diameter: 5/16" (8 mm)
• E: 9/32" (7 mm)
• F: 1 13/16" (46 mm)
• G: 1 19/64" (33 mm)

Caption:

• Working Load (WL): For nautical applications
• Working Load Limit (WLL): For industrial use only; safety factor is 5 times the breaking load.

*Sold as an individual item.

The Wichard Self-Locking Allen Head Pin D Shackle (part number 01304) is a specialized fastening component designed for secure connections in demanding environments. Constructed from grade 316L stainless steel, this 8mm (5/16") diameter shackle features a self-locking mechanism to prevent accidental opening and an Allen head pin for a low-profile, snag-free design. It is engineered to be vibration-resistant, ensuring security during operation, and is CE marked for safety compliance. This shackle is suitable for applications requiring reliable load bearing, with a working load of 2110 lb (960 kg) for nautical use and a Working Load Limit (WLL) of 1190 lb (540 kg) for industrial contexts. Its compact dimensions make it particularly useful in tight spaces, addressing the need for robust, secure connections where space is limited and accidental disengagement must be avoided.
