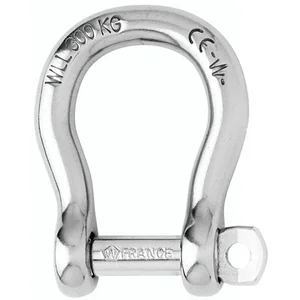

01247 - Wichard Marine Wichard Non-Locking Stainless Steel Bow Shackle - 16mm

Non-Locking Bow Shackle - 16mm Diameter - 5/8"

Overview: This bow shackle is designed for industrial applications and crafted from high-quality 316L stainless steel, ensuring durability and resistance to corrosion. Features a secure pin system that prevents loosening caused by vibrations.

Applications: Ideal for situations where ample space is required and capable of attaching multiple lines or cables.

Specifications:

• Materials: 316 stainless steel grade
• Working Load: 7050 lb (3200 kg)
• Working Load Limit: 4400 lb (2000 kg)
• Breaking Load: 22040 lb (10000 kg)
• Weight: 1.19 lb (540 g)

Dimensions:

• A: 2 3/4" (70 mm)
• B: 1 17/64" (32 mm)
• C: 35/64" (14 mm)
• D: 1 17/64" (14 mm)
• D diameter: 5/8" (16 mm)
• E: 19/32" (15 mm)
• M: 3 11/32" (85 mm)

The Wichard Non-Locking Stainless Steel Bow Shackle (part number 01247) is an industrial-grade lifting shackle designed for secure attachment in demanding environments. Constructed from 316L stainless steel, it offers high resistance to corrosion and ensures durability in various applications. This 16mm diameter bow shackle features a secure pin system engineered to prevent loosening, even when subjected to vibrations, making it suitable for dynamic industrial use cases. It is ideal for scenarios requiring ample space for connections, allowing for the attachment of multiple lines or cables. With a working load limit of 4400 lb (2000 kg) and a breaking load of 22040 lb (10000 kg), this shackle is specified for industrial applications where reliable load bearing and secure fastening are critical. Its design addresses the need for robust, non-locking connections in B2B IT hardware installations or related industrial contexts.
