01206 - Wichard Marine Wichard Self-Locking D Shackle - 12mm Diameter - 15/32"

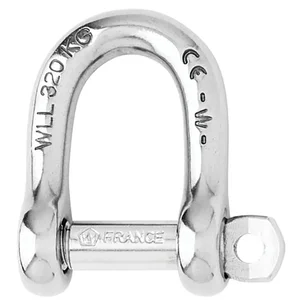

Self-Locking D Shackle - 12mm Diameter - 15/32"

Features:

• Self-locking D shackle forged in grade 316L stainless steel
• The pin is locked into one of the indentations
• No risks of loosening due to vibrations
• Outstanding working and breaking loads
• WLL: only for industrial applications (lifting i.e…)
• CE marking

Applications:

• Standard applications of the shackle
• Attachment applications: blocks, head

Specifications:

• Materials: 316 stainless steel grade
• Working load: (lb) 4580 / (kg) 2080
• WLL: (lb) 2640 / 1200 (kg)
• Breaking load: (lb) 13220 / (kg) 6000
• Weight: (lb) 0.425 / (g) 193

Dimensions:

• A: (inch) 1-21/32" / (mm) 42
• B: (inch) 1-1/16" / (mm) 27
• C: (inch) 15/32" / (mm) 12
• D: (inch) 15/16" / (mm) 24
• D diameter: (inch) 15/32" / (mm) 12
• E: (inch) 7/16" / (mm) 11
• F: (inch) 2-7/8" / (mm) 73
• G: (inch) 2-7/16" / (mm) 62

Caption:

• Working Load (WL): For nautical applications
• Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5

*Sold as an Individual

The Wichard Self-Locking D Shackle, part number 01206, is a heavy-duty lifting component designed for industrial and general rigging applications. Forged from 316L stainless steel, this shackle offers durability and resistance to environmental factors. Its self-locking mechanism is engineered to prevent the pin from loosening under vibration, which contributes to maintaining secure connections in operational environments. This feature makes it suitable for use as an attachment point for blocks and other assembly components where consistent load integrity is required. With a 12mm diameter pin, it supports a Working Load Limit (WLL) of 2640 lb (1200 kg) and a Breaking Load of 13220 lb (6000 kg). The shackle is CE marked, indicating compliance with relevant industrial safety standards. This product is intended for IT and operations buyers requiring reliable hardware for secure lifting and rigging tasks.
