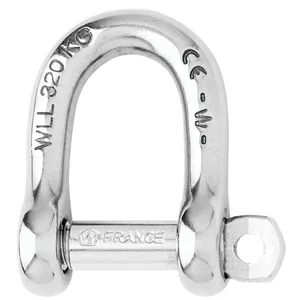

01204 - Wichard Marine Wichard Self-Locking D Shackle - Diameter 8mm - 5/16"

Self-Locking D Shackle - Diameter 8mm - 5/16"

Features:

• Self-locking D shackle forged in grade 316L stainless steel
• The pin is locked into one of the indentations
• No risks of loosening due to vibrations
• Outstanding working and breaking loads
• WLL: only for industrial applications (lifting i.e…)
• CE marking and batch number

Applications:

• Standard applications of the shackle
• Attachment applications: blocks, head…

Specifications:

• Materials 316 stainless steel grade
• Working load (lb) 2200
• WLL (lb) 1190
• Breaking load (lb) 5950
• Weight (lb) 0.121

Dimensions (see 2nd image):

• A (inch) 1-1/32"
• B (inch) 5/8"
• C (inch) 5/16"
• D (inch) 5/8"
• D diameter (inch) 5/16"
• E (inch) 9/32"
• F (inch) 1-49/64"
• G (inch) 1-39/64"

The Wichard Self-Locking D Shackle, part number 01204, is a forged component manufactured from grade 316L stainless steel. This shackle is designed for secure attachment in industrial and commercial settings where reliable connection points are critical. Its self-locking mechanism ensures the pin remains engaged within one of its indentations, mitigating the risk of loosening due to vibrations during operation.

This product is suitable for IT and industrial buyers requiring robust hardware for various attachment applications, including securing blocks or other components. It addresses the need for a durable shackle with defined load capacities, offering a working load of 2200 lbs and a breaking load of 5950 lbs. The shackle has a diameter of 5/16 inches (8mm) and is specifically rated for industrial lifting applications, indicated by its WLL (Working Load Limit) of 1190 lbs and CE marking. Its construction and locking feature provide a dependable solution for maintaining secure connections in demanding environments.
