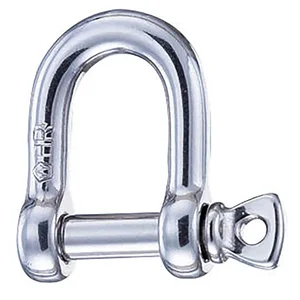

011200 - Wichard Marine Wichard HR Long D Shackle - 10mm Diameter - 25/64"

HR Long D Shackle - 10mm Diameter - 25/64"

Features:

• Forged long shackle in HR stainless steel grade (17,4 PH)
• Outstanding working and breaking load
• An HR shackle can be up to 60% more resistant than a shackle in 316L stainless steel
• WLL: only for industrial applications (lifting i.e…)
• CE marking

Applications:

• Applications requesting high loads
• Standard applications of the shackle
• Attachment applications: blocks, head …
• Do not use it for mooring applications

Specifications:

• Materials: HR 17.4 PH stainless steel grade
• Working load: (lb) 5820 / (kg) 2640
• WLL: (lb) 2640 / (kg) 1200
• Breaking load: (lb) 13220 / (kg) 6000
• Weight: (lb) 0.362 / (g) 164

Dimensions:

• A: (inch) 3 5/64" / (mm) 78
• B: (inch) 25/32" / (mm) 20
• D diameter: (inch) 25/64" / (mm) 10

Caption:

• Working Load (WL): For nautical applications
• Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5
• High Resistance (HR)

*Sold as an Individual

The Wichard HR Long D Shackle, part number 011200, is a forged lifting shackle designed for industrial and high-load attachment applications. Constructed from HR 17.4 PH stainless steel, this shackle offers increased resistance compared to 316L stainless steel alternatives. It is suitable for use in scenarios requiring secure connections for blocks and other components where high working and breaking loads are present. The shackle has a 10mm (25/64") diameter and is CE marked, indicating compliance with industrial standards. It is rated with a Working Load Limit (WLL) of 2640 lb (1200 kg) for industrial use, based on a safety factor of 5 times the breaking load. This product is intended for IT and industrial buyers seeking a robust fastening solution for equipment and infrastructure that demands high strength and durability.
