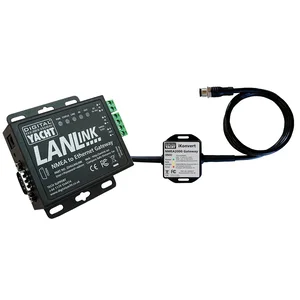

ZDIGLANLN2K - Digital Yacht NMEA 2000 to Ethernet Gateway with Web Interface

NMEA 2000 to Ethernet Gateway

As boats increasingly adopt wireless routers and internet connectivity solutions like Digital Yacht 4G Connect, the NMEA 2000 Ethernet Gateway allows seamless integration of NMEA data into the onboard network. This gateway enables connected devices and applications to access real-time data from the boat's systems.

Available in two versions for NMEA 0183 and NMEA 2000, it features a user-friendly web interface for easy configuration of NMEA baud rates and IP/Port settings through any web browser.

This device supports multiple TCP/IP connections and is bi-directional. Users can easily configure applications such as TZ iBoat, iNavX, NavLink, iSailor, Imray, and Weather 4D by entering the designated IP address and port for NMEA data streaming.

Key Features:

• NMEA 2000 to Ethernet gateway version for seamless integration.
• Ships with an iKonvert NMEA Certified gateway for effortless connection to the NMEA 2000 backbone.
• Low power operation with 12/24V DC compatibility.
• Easy connection to routers or devices via RJ45 Cat 5/6 patch cable.
• User-friendly web interface for straightforward setup via any web browser.
• Supports TCP/IP or UDP modes with up to 5 simultaneous connected devices in TCP/IP mode.
• Bi-directional communication capabilities.
• Raw mode with encapsulated PGNs or conversion mode supporting AIS, instruments, and GPS.
• RS232 port available for additional PC applications.
• Status indicators display power, data in-out, network link, and server status.

Set-Up Process:

• Access a menu-driven web UI through a client device, eliminating the need for complex software installation.
• Configure NMEA data for 4800 or 38400 baud rates and select between TCP/IP or UDP modes.
• Set up with either fixed or dynamic IP addresses.
• Status page available for system diagnostics.

Specifications:

• Power Supply: 10-35V DC (Approx. 50mA consumption at 12V DC).
• Network Port: Ethernet RJ45 10/100MB.
• IP Mode: Static or DHCP.
• Operating Modes: TCP/IP or UDP; capable of supporting up to 5 devices in TCP/IP mode.
• NMEA Input: Configurable at 4800 or 38400 baud (NMEA 0183).
• NMEA 2000 support via iKonvert gateway.
• Operating Temperature: -25 to +70 degrees C.
• LED Indicators: Power, Status, Link, Data In, Data Out.
• Additional Options: RS232 connectivity (non-concurrent with NMEA).
• Dimensions (W x H): 95mm x 86mm.

The Digital Yacht NMEA 2000 to Ethernet Gateway provides a solution for integrating marine NMEA 2000 data into an onboard Ethernet network. This device, part number ZDIGLANLN2K, is designed for IT professionals and marine system integrators managing vessel networks that require real-time data access for connected applications and devices. It facilitates the transfer of NMEA 2000 data to an IP network, enabling compatibility with various marine navigation and monitoring software. The gateway includes an iKonvert NMEA Certified gateway for direct connection to an NMEA 2000 backbone. Configuration is managed through a web interface, accessible via any web browser, allowing for settings like IP/Port and baud rates. It supports both TCP/IP and UDP modes, with TCP/IP mode accommodating up to five simultaneous device connections. The unit operates on 10-35V DC, offering bi-directional communication and status indicators for system diagnostics.
