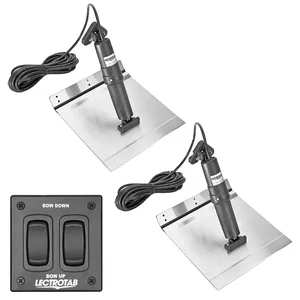

XKAF12X12A - Lectrotab 12x12 Aluminum Trim Tab Kit with Rocker Switch

Lectrotab 12x12 Aluminum Trim Tab Kit with Rocker Switch

This Lectrotab Trim Tab Kit is specially designed for aluminum-hulled boats, providing an efficient and durable solution for all vessels. The kit includes robust aluminum alloy trim tabs, featuring a strong "no-break" polypropylene hinge and a corrosion-resistant epoxy coating to ensure longevity.

The precision-engineered actuator guarantees quiet operation and is completely maintenance-free. It is corrosion-free and offers accurate tab positioning for maximum lift force. All components are self-contained for easy installation, eliminating the need for in-boat installation.

Unlike traditional hydraulic systems, this kit has no risk of oil leaks. The actuator comes with a choice of mounting brackets for versatility. The enhanced flat rocker switch offers improved sealing against water intrusion and features a recessed design to prevent damage. It operates on an "instant stop" circuit to avoid actuator over-runs.

Technical Specifications:

• Trim Tab Size (L x W) - 12" x 12" (30 x 30 cm)
• Boat Length - Suitable for 18' to 32' (5.5 to 9.5 M)
• Material - Marine grade 6005-T5 Aluminum Alloy
• Actuator Voltage - 12 V
• Actuator Stroke Length - 2.25" (57 mm)
• Actuator Cable Length - 23' (7 M)
• Actuator Vertical Height - 11.875" (302 mm)
• Rocker Switch Dimensions (W x H) - 3.125" x 3.25" (79.4 x 82.5 mm)
• Rocker Switch Cutout (H x W) - 2.25" x 2" (57.5 x 50 mm)
• Rocker Switch Voltage - 12 or 24 V

The Lectrotab 12x12 Aluminum Trim Tab Kit with Rocker Switch, part number XKAF12X12A, is an IT hardware solution designed for marine applications. This kit provides an efficient and durable trim tab system specifically for aluminum-hulled boats ranging from 18 to 32 feet in length. It addresses the need for precise vessel control and stability without the complexities of traditional hydraulic systems.

Key components include 12" x 12" marine-grade 6005-T5 aluminum alloy trim tabs, featuring a "no-break" polypropylene hinge and corrosion-resistant epoxy coating. The 12V actuator is maintenance-free, corrosion-resistant, and offers accurate tab positioning with quiet operation. It is self-contained for straightforward installation, eliminating the need for in-boat components. The enhanced flat rocker switch, compatible with 12V or 24V systems, offers improved water sealing and an "instant stop" circuit to prevent actuator over-runs. This kit is suitable for marine businesses requiring reliable and low-maintenance vessel trim control.
