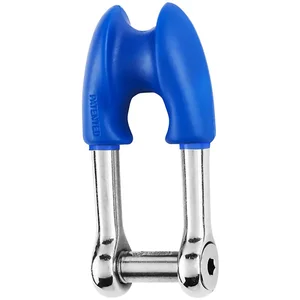

Wichard 8mm Thimble Shackle with Allen Head Pin

The Wichard Thimble Shackle features a robust design forged from grade 316L stainless steel, ensuring durability and resistance against corrosion. This innovative shackle allows for splicing a rope without the need for an additional thimble, making it a convenient choice for various nautical applications.

Applications:

• Ideal for mainsheet halyards
• Supports maximum rope size of 12 mm

Specifications:

• Working load: 2200 lb (1000 kg)
• Breaking load: 6610 lb (3000 kg)
• Weight: 0.168 lb (76 g)

Dimensions:

• A: 1 39/64" (41 mm)
• B: 5/8" (16 mm)
• C: 5/16" (8 mm)
• D: 5/8" (16 mm)
• E: 9/32" (7 mm)
• F: 2 63/64" (76 mm)
• G: 1 19/64" (33 mm)

Note: Working Load (WL) is suitable for nautical applications, while Working Load Limit (WLL) is intended for industrial use only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5.

*Sold as an Individual

The Wichard 8mm Thimble Shackle with Allen Head Pin, part number 01394, is a specialized lifting thimble designed for secure rope termination in demanding environments. Forged from grade 316L stainless steel, it offers robust corrosion resistance and durability. This component is engineered to facilitate direct rope splicing, eliminating the need for a separate thimble, which streamlines rigging and reduces component count. It is particularly suited for nautical applications, such as mainsheet halyards, where reliable load bearing and resistance to environmental factors are critical. The shackle supports a maximum rope size of 12 mm and features a captive pin design to prevent loss during installation or use. With a working load of 2200 lb (1000 kg) and a breaking load of 6610 lb (3000 kg), it provides a secure connection for appropriate load requirements.
