Wavenet WAV-1000-18-4-GRAY CC1804URGY4 18-4 SHIELDED SPEAKER GRAY

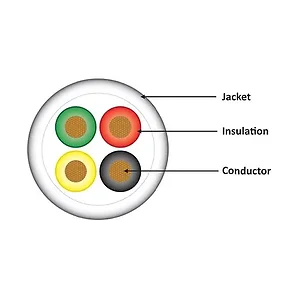

- CONSTRUCTION: 18 AWG 7 STRAND BARE COPPER 4 CONDUCTORS TWISTED AND JACKETED- INSULATION: SR-PVC- COLOR CODE: BLACK, RED, WHITE, GREEN- SHIELD/DRAIN: UNSHIELDED- ASSEMBLY: 4 CONDUCTORS TWISTED AND JACKETED- JACKET: PVC- DIAMETER: 0.182r Nominal- UL: CMR OR CL3R OR FPLR- FOR PLENUM RATED VERSION GO TO SPEC. NO. P40031- CAPACITANCE: 25.4 pF/ft Nom.- VEL OF PROP: 55%- IMPEDANCE: 73 OHMS- RESISTANCE: 6.92 OHMS D.C. PER 1000 FT @ 68 DEG. F MAXIMUM- TEMP/VOLTAGE: 75C / 300V (UP TO 300V ; POWER-LIMITED SYSTEMS PER NEC ART. 725 OR 800)
