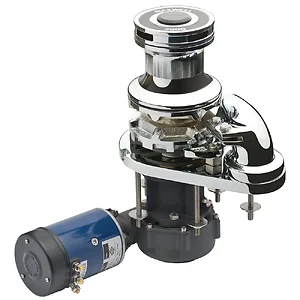

VWC2500 Vertical Windlass & Chain Pipe 12V - 3/8" BBB Chain OnlyThe VWC Series is designed for automatic vertical handling of chain-only anchor rodes while offering an independent capstan for the retrieval of a secondary rope and chain rode or to assist with docking procedures.
Features:- Fully automatic single or dual direction chainwheel operation
- High-quality finish on above deck components, manufactured from marine grade stainless steel (AISI 316), for long term durability
- Integral chain pipe and stripper are aligned for virtually jam-tree operation providing automatic feed of chain into and out of the anchor locker
- Port and starboard chain pipes for twin installations (Sizes 2500 and above only.)
- Cone-type brake/clutch mechanism permits manual 'free fall' anchoring; Cone clutches, unlike dog clutches, provide smooth progressive engagement ensuring safe and precise operator control
- Chainwheel locking pawl
- Clutch disengagement of the chainwheel enables independent rope hauling from any direction, using the Max-grip™ snag-tree warping drum for positive control of all ropes
- Simple through deck installation by modular design and precise alignment of gearbox to the topworks utilising marine-grade stainless steel bolts
- Anodized aluminium gearbox and spacer tube on all models
- Heavy duty, dual direction motor, designed for marine winches
- Low Profile configurations (no warping drum) are available
Specifications:- Maximum Pull/Lift: 2,500lbs / 1135kg
- Static Hold: 4,840lbs / 2200kg
- Chain Short Link: 3/8" / 9.5mm
- Line Speed(Normal Working): 50'/min / 15M/min
- Power Supply: 12V
- Motor(Watts): 1200W
- Net Weight - DC: 84lbs / 38kg
- Hydraulic Pressure: 2,000PSI / 138 bar
- Hydraulic Flow: 9.5gal/min / 36L/min
- Net Weight - Hyd:70lbs / 32kg
