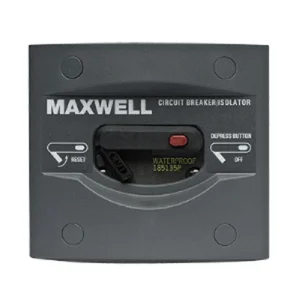

P100791 - Maxwell 135Amp 12/24V Windlass Isolator

135Amp 12/24V Windlass Isolator

Maxwell circuit breaker/isolator panel, 135 Amp 12/24-volt, suitable for all 800 to 3500 Series 12V & 4000 24V windlasses.

Features:

• For protection of the main conductor circuit for DC winches and the control circuit for hydraulic winches
• Mount as close as possible to the battery power source to ensure protection against short circuit and to reduce the risk of DC motor burn-out in the event of winch overloading
• Enables the battery, or electrical supply, to be isolated when winch is not in use
• Suitable for 12V or 24V DC systems

The Maxwell 135Amp 12/24V Windlass Isolator is a circuit breaker/isolator panel designed for DC winch applications. This component provides essential protection for the main conductor circuit of DC winches and the control circuit of hydraulic winches. It is engineered to safeguard against short circuits and mitigate the risk of DC motor burnout in cases of winch overloading. By enabling the isolation of the battery or electrical supply when the winch is not in use, it contributes to system safety and power management. This isolator is suitable for integration into both 12V and 24V DC systems. It is compatible with Maxwell 800 to 3500 Series 12V windlasses and 4000 Series 24V windlasses. For optimal protection, the unit, part number P100791, should be mounted as close as possible to the battery power source.
