Product Overview

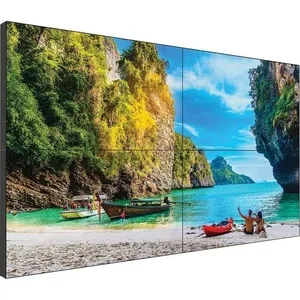

FACTORY DIRECT ONLY ITEM 55in. 1920x1080, 500 nit ultra narrow bezel LCD video wall display. 24x7, landscape and portrait, OPS slot. Internal power supply and electronics. Built-in video wall processing for up to 10x10. IR, RS-232, and LAN control.
Technical Specifications
Product Name
VM55LX-U Planar Part Number
997-9220-00 Viewable Size
55" diagonal Display Active Area
47.6" x 26.7" (1209.6mm x 680.4mm) Aspect Ratio
16:9 Display Resolution
1920 x 1080, full HD Brightness (Typical)
500 cd/m2 Contrast Ratio (typ)
1400:1 Contrast Ratio - Dynamic
20,000:1 Response Time (typ)
8 ms Viewing Angle (typ)
178o External Connections
DisplayPort 1.2 in x 1, DisplayPort out, HDMI 2.0 in x 2 (HDCP 2.2), HDMI out,OPS x 1, OPS USB 2.0 x 2, OPS USB 3.0 X 1 Audio Input
Phone jack and L/R RCA jack Audio Output
Phone jack, external speaker connector Display Control
IR, RS-232, LAN, Keypad Line Voltage
100-240V, 49/61Hz Power Consumption (typ)
140W Product Approvals
FCC Class A, cTUVus, CE Cabinet Dimensions (W x H x D)
47.8" x 26.9" x 3.9" (1213.4mm x 684.2mm x 99.3mm) Tiled Bezel Width
3.5mm
