Technical Specifications

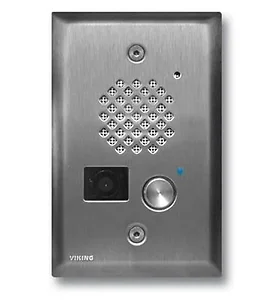

- Compact size: Front panel is the size of a typical single gang midsize wall plate
- Mounting: Flush mounts in a single gang electrical box (2.25 deep x 2.00 wide x 2.84 tall minimum) or surface mounts in a Viking model VE-3x5 (not included, see DOD# 424)
- Available in 5 standard faceplate finishes: Brushed Stainless Steel, Oil Rubbed Bronze, Polished Brass, Satin Black and Satin White
- PNL-40 faceplates: Replacement faceplates with matching screws available in all five standard finishes
- Vandal Resistant Features: 16 gauge polished brass or 18 gauge 304 stainless steel faceplate, 316 stainless steel push button, carbon fiber reinforced plastic speaker screen, scratch resistant powder coating, hex drive mounting screws
- Weather Resistant Features: Mylar speaker, faceplate gasket, mic and speaker gasket, internally sealed (IP67) push button switch, self draining mic mount and UV stable weather resistant powder coating (excluding E-40-SS 304 Stainless Steel faceplate)
- E-40-EWP is designed to meet IP66 Ingress Protection Rating (see DOD# 859 for more information)
- Telephone line powered
- Microphone and speaker volume controls
- Programmable Intelligent call progress detection for automatic hang-up on CPC, silence, busy signal, or time out
- Selectable auto answer feature for monitoring
- Programmable VOX (mic/speaker) switching speed
- Blue LED helps locate push button, indicate ringing and off hook
