Special Order
Ships in 1-2 weeks
Condition: New
66 Block Solid-State UL Listed Secondary Protector 160mA PTC 235V Clamping 2 LEDs to indicate Protection and Ground OK
- 66 Block UL Secondary 235V Surge Protector
- UL Secondary listed with 160mA PTC for voice/fax/modem lines (235V)
- Dual Indicator Lights: Protection OK and Ground Connection OK
- Solid-State Protection
- Single Pair Protection: Protect only the lines requiring protection
- Ideal for Retrofit Applications: Just remove the bridging clips from the block and replace them with the Protector, add the ground connection, and the pair is connected
- Grounding Requirements: Field-installed solid copper wire
- Recommended Grounding Impedance: <0.5 Ohm
- Fuse Rating: 160mA (8-10 Ohms)
- Signal Perfect Circuitry
- Clamping Level: 235V
- Response Time: 1-5 Nanoseconds
- Capacitance: <50pF
- Suppression Modes: Metallic and Longitudinal
- Wires Protected: 2-wires, 1 pair
- Termination Type: 66 M Blocks

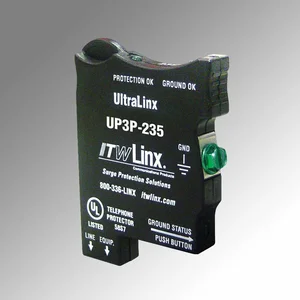

UP3P-235 - Itw Electronic Component Solutions 66 Block UL Secondary Surge Protector 235 V **Must be ordered in Multiples
