Condition: New

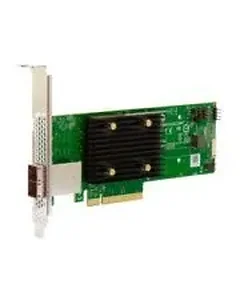

The LSI Logic 9500-8e is a high-performance 12Gb/s tri-mode RAID controller designed to support SAS, SATA, and NVMe devices in one unified solution. With PCIe 4.0 interface and support for up to 1024 SAS/SATA or 32 NVMe devices, this controller is ideal for high-throughput data applications and scalable enterprise storage environments. Backed by robust management tools like LSI Storage Authority and StorCLI, it offers full compatibility with major operating systems and delivers enterprise-grade reliability and performance.
Model: LSI 9500-8e (05-50075-01)
Device Support:
Up to 1024 SAS/SATA devices
Up to 32 NVMe devices
Interface:
PCI Express 4.0, x8 lane
External Ports:
2 x SFF-8644 (x4 lanes each)
I/O Controller:
SAS3808
Tri-Mode Support:
SATA, SAS, and PCIe/NVMe
Typical Power Consumption:
6.12W
Operating Temperature:
0°C to 55°C (32°F to 131°F)
Operating Humidity:
20% to 80%, non-condensing
Form Factor:
Full-height and low-profile brackets included
MTBF (Mean Time Between Failures):
5,000,000 hours at 40°C
OS Compatibility:
Microsoft Windows
VMware vSphere/ESXi
Red Hat Enterprise Linux
SuSE Linux
Ubuntu Linux
Citrix XenServer
CentOS, Debian, Oracle Linux, Fedora, FreeBSD
Management Software:
LSI Storage Authority (LSA)
StorCLI (Command-Line)
HII (UEFI Human Interface Infrastructure)
Regulatory Certifications:
FCC, CE, VCCI, RoHS, WEEE, ICES-003, RRA, CNS 13438, EN/IEC/UL 60950
Product Dimensions:
12 x 6 x 10 inches
Weight:
6.00 lbs
Warranty:
3 Years Manufacturer Warranty
Broadcom 05-50075-01 9500-8e Tri-Mode RAID Controller – 8-Port External 12Gb/s SAS/SATA/NVMe PCIe 4.0 – SFF-8644
