Condition: New

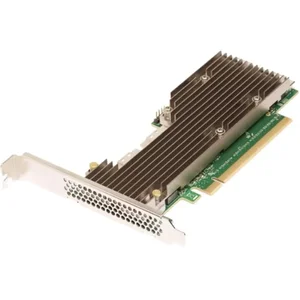

The Broadcom P411W-32P disk controller, part number 05-50054-00, is designed for IT environments requiring high-performance storage connectivity. This single kit offers a x16 PCIe 4 host interface and supports PCIe (NVMe) storage interfaces at x4, x2, and x1 speeds. It integrates a PEX88048 PCIe switch and features four x8 SFF-8654 connectors, facilitating direct NVMe drive attachment. Operating within a temperature range of 0°C to 55°C and consuming a typical power of 21W, this controller is suitable for servers and workstations where direct NVMe access and high throughput are critical. The unit is built for continuous operation, indicated by an MTBF exceeding 5,000,000 hours at 40°C.
| Lifecycle | Active |
|---|---|
| Typical Power | 21W |
| Connectors | Four x8 SFF-8654 |
| PCIe Switch | PEX88048 |
| Storage Interface | |
| PCIe (NVMe) | x4, x2, x1 |
| Host Interface | x16 PCIe 4 |
| Host Bus Type | PCI Express 4.0 |
| Operating Temperature | 0oC to 55oC |
| Operating Voltage (V) | +12 +/-8%, 3.3 +/-9% |
| MTBF | > 5,000,000 hours at 40o C |
| Regulatory Certifications | |
| Australia/New Zealand (AS/NZS 3548), Canada (ICES-003), EMC | Class B-US (CFR 47, P15B), Europe (EN55022/EN55024), Japan (V-3/02.04), Korea (RRA no 2013-24 and 25), RoHS, Safety: EN60950, Taiwan (CNS 13438), USA (FCC 47 CFR part 15 Subpart B, class B), WEEE |
| Item Dimension (L inchxW inchxH inch) | 12 x 6 x 10 |
| Weight | 6.00 lb |
| Warranty Information | 3 Years |
