TM185C-HW-HB - Airmar TM185C High Wide CHIRP Transducer

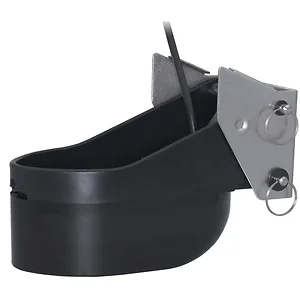

Airmar TM185C High Wide CHIRP Transducer

This high wide transducer delivers exceptional performance with its Chirp technology, making it an excellent choice for serious anglers.

• Depth and fast-response water-temperature sensor
• 1 kW power output with a maximum depth of 152 m (500')
• Frequency range: 150 kHz to 250 kHz with a constant 25� beamwidth
• 100 kHz bandwidth from a single transducer
• Optimized for popular fishing frequency of 200 kHz
• High frequency for superior shallow-to-mid-depth performance and fish target separation
• Wide beamwidth offers enhanced coverage for detecting fish
• Designed for installation on outboard and I/O powered boats
• Recommended boat size: Up to 10 m (32')
• Applicable for planing and displacement hulls made of fiberglass or wood
• Available in thru-hull (B175HW) and in-hull (M285HW) models
• Features Xducer ID technology for exceptional usability

With its unique wide beam and high frequency, the Airmar TM185C is ideal for both inshore and pelagic fishing, ensuring maximum coverage and clarity in sonar readings down to 500 feet.

The Airmar TM185C High Wide CHIRP Transducer is designed for marine applications requiring detailed sonar readings. This transducer provides depth and fast-response water temperature data, suitable for outboard and I/O powered boats up to 10 meters (32 feet) in length. It operates within a frequency range of 150 kHz to 250 kHz, utilizing CHIRP technology for enhanced target separation. With a 1 kW power output, it offers a maximum depth capability of 152 meters (500 feet). The constant 25� beamwidth delivers broad coverage, which can be beneficial for detecting fish in shallow to mid-depth ranges. The TM185C-HW-HB model is applicable for both planing and displacement hulls constructed from fiberglass or wood. It integrates Xducer ID technology for operational usability.
