TM185C-HW-0 - Airmar TM185C High Wide CHIRP Transducer

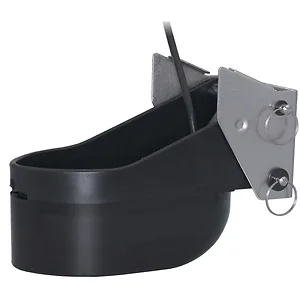

Airmar TM185C High Wide CHIRP Transducer

Model: TM185-HW

• 1 kW power with a maximum depth of 152 m (500 ft)
• High-frequency range of 150 kHz to 250 kHz with constant 25� beamwidth
• Wide beamwidth for enhanced coverage under the boat
• Ideal for detecting fish in shallow to mid-depths
• Urethane transom transducer with stainless steel bracket
• Recommended for boats up to 10 m (32 ft)
• Compatible with planing and displacement hulls in fiberglass or wood
• Includes exclusive Xducer ID� technology
• Also available in thru-hull (B175HW) and in-hull (M285HW) models

The Airmar TM185C is designed for anglers seeking superior resolution and maximum coverage under the boat, featuring high-band frequency operations that provide clear fish arches and detailed bottom structure.

The Airmar TM185C High Wide CHIRP Transducer is a 1 kW transom-mount unit designed for marine applications, specifically for detecting fish and mapping bottom structure in shallow to mid-depths. Operating within a high-frequency range of 150 kHz to 250 kHz, it maintains a constant 25� beamwidth, providing enhanced coverage directly under the boat. This transducer is suitable for boats up to 10 meters (32 feet) and is compatible with both planing and displacement hulls constructed from fiberglass or wood. It integrates a depth and fast-response water-temperature sensor and utilizes an internal broadband ceramic assembly. The urethane housing and stainless steel bracket accommodate transom angles from 3� to 21�. The TM185C-HW-0 also features Xducer ID� technology, offering detailed imaging for anglers requiring high-resolution data.
