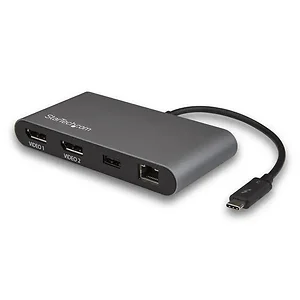

TB3DKM2DP - Startech AC TB3DKM2DP MiniThunderbolt3 Dock f Laptops DualDisplayPort 4K 60Hz

Hardware
4K Support: Yes
Bus Type: Thunderbolt 3
Chipset ID: Intel - Alpine Ridge JHL6540
Intel - WGI210AT
Texas Instruments - TPS65983
ASMedia - ASM1042A
Displays Supported: 2
Fast-Charge Port(s): No
Industry Standards: Thunderbolt 3
IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
USB 3.0 - Backward compatible with USB 2.0 and 1.1 Performance
Auto MDIX: Yes
Compatible Networks: 10/100/1000 Mbps
Full Duplex Support: Yes
Maximum Data Transfer Rate: 40 Gbps (Thunderbolt 3)
5 Gbps (USB 3.0)
2 Gbps (Ethernet Full-Duplex)
Maximum Digital Resolutions: Dual 4K displays - DisplayPort 4096 x 2160p at 60Hz / 3840 x 2160p at 60Hz
Single 5K display - DisplayPort 5120 x 2880 at 60Hz
PXE: No
Type and Rate: Thunderbolt 3 - 40 Gbit/s
UASP Support: Yes Connector(s)
Connector Type(s): 1 - Thunderbolt 3 USB-C (24-pin) Male
2 - DisplayPort (20 pin) Female
1 - USB Type-A (9 pin) USB 3.0 Female
1 - RJ-45 Female Software
OS Compatibility: Windows 7, 8, 8.1, 10
macOS 10.12 - 10.13 Special Notes / Requirements
Note: A 4K-capable display is required to achieve 4K x 2K resolution (4K is also known as 4K x 2K).
A 5K-capable DisplayPort display is required to achieve 5120 x 2880 resolution.
Certain monitors may be limited to 4K at 30Hz when connecting through DisplayPort. These monitors include the following models: Dell P2715Q, Viewsonic VX2475Smhl-4K, Philips 288P6LJEB, LG 31MU97C-B, Asus PB287Q (these models will need to be set to 4K at 30Hz).
Active adapters are required if adapting DisplayPort to HDMI/DVI/VGA monitors.
System and Cable Requirements Thunderbolt 3 equipped computer with a Thunderbolt 3 port. Power
Power Source: USB-Powered Environmental
Humidity: 5-95% RH (Non-condensing)
Operating Temperature: 5^oC to 35^oC (41^oF to 95^oF)
Storage Temperature: -40^oC to 70^oC (-40^oF to 158^oF) Physical Characteristics
Cable Length: 7.9 in 200 mm
Color: Black and Gray
Enclosure Type: Aluminum Whats in the Box
Included in Package: 1 - Thunderbolt 3 dock
1 - instruction manual Item Dimension (L"xW"xH")
9 x 6 x 2

Weight
1 lb

Warranty Information
3 Year Warranty
