TAE6-14R-10 - Pacer Group Pacer Closed-End Tinned Lug 6 AWG - 1/4" Stud - 10 Pack

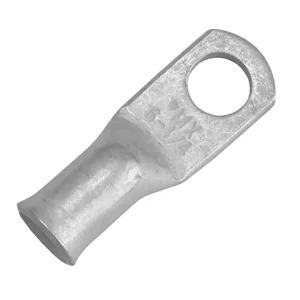

Pacer Closed-End Tinned Lug 6 AWG - 1/4" Stud - 10 Pack

Creating a robust electrical connection is crucial for every application. Pacer's closed-end tinned lugs ensure durability and longevity, making them perfect for marine environments. With a design that prevents exposed seams, these lugs are capable of forming waterproof connections when paired with epoxy heat shrink tubing. To use, simply strip the wire or cable to the appropriate length, slide the lug over the wire, and crimp using the correct tool. For added protection, use epoxy lined heat shrink.

Pacer’s closed-end lugs accommodate wire sizes from 8 AWG to 4/0 AWG and are available in various stud sizes including #10, 1/4", 5/16", 3/8", and 1/2". If you're unsure which size is right for your application, reach out to a Pacer expert for assistance.

Features:

• Tin plated for corrosion resistance
• No exposed seams for greater safety
• Rated for 600V
• Constructed from seamless tubes of 99.9% copper for excellent conductivity
• Compatible with stranded copper wires
• Larger pad area for improved contact
• Cable size and stud size stamped on the pad
• Can be crimped or soldered
• Controlled flare for easy cable insertion
• Tight barrel to pad transition for extended barrel length

Compliances:

• E.T.P. (Electrolytic Tough Pitch) CDA-110
• ASTM-B-152 copper rated at 100% conductivity
• UL & CSA Approved
• RoHS Compliant
• Exceeds SAE Conductivity STD J163 & J1811

Specifications:

• Wire AWG: 6
• Stud Size: 1/4"
• Length: 1.266"
• Width: 0.438"
• Clearance: 0.344"
• Package Quantity: 10

The Pacer Closed-End Tinned Lug (TAE6-14R-10) is a wire and cable connector designed for creating secure electrical connections in various environments. This 10-pack of lugs is suitable for IT and industrial applications requiring robust termination of 6 AWG stranded copper wire to a 1/4" stud. Constructed from seamless 99.9% copper and tin-plated for corrosion resistance, these lugs offer reliable conductivity and durability. Their closed-end design, without exposed seams, supports the creation of waterproof connections when used with epoxy heat shrink tubing. Rated for 600V, these lugs are compatible with stranded copper wires and can be applied via crimping or soldering. The larger pad area is engineered for improved contact, and the controlled flare facilitates cable insertion. These lugs are intended for buyers who need to establish dependable, long-lasting electrical connections, particularly in settings where environmental protection and high conductivity are critical.
