TAE4-56R-10 - Pacer Group Pacer 4 AWG Tinned Lug - 5/16" Stud Size - 10 Count

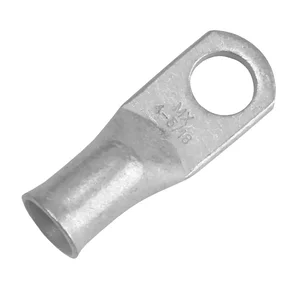

Pacer 4 AWG Tinned Lug - 5/16" Stud Size - 10 Count

Establishing a reliable connection is crucial for any electrical system. Pacer's closed-end lugs offer not only strength but also durability over time. These lug connectors are tin-plated with no exposed seams, making them particularly suitable for marine applications. Their design helps create waterproof connections when paired with epoxy heat shrink, ensuring that all conductor parts remain shielded from environmental factors.

To install, strip your wire or cable to the recommended length, then slide the lug over the exposed wire, ensuring the insulation meets the lug's edge. Afterward, crimp the lug with the appropriate tool and, for enhanced durability, consider adding epoxy-lined heat shrink. Pacer's closed-end lugs are available for wire sizes ranging from 8 AWG to 4/0 AWG and come in various stud sizes, including #10, 1/4", 5/16", 3/8", and 1/2". If you're unsure about selecting the right lug, feel free to reach out to a Pacer specialist for assistance.

The Pacer 4 AWG Tinned Lug (TAE4-56R-10) is a closed-end connector designed for establishing secure electrical connections in various applications. These lugs are tin-plated and feature no exposed seams, contributing to their durability and corrosion resistance, particularly in environments where moisture is a concern, such as marine settings. Constructed from seamless 99.9% copper tubing, they are rated for 600V applications and optimized for use with stranded copper wires. The design includes a controlled flare for easier cable insertion and a tight transition from barrel to pad, enhancing barrel length. Installation involves stripping the wire, sliding the lug, and crimping or soldering. When paired with epoxy heat shrink, these lugs can help create waterproof connections, protecting conductors from environmental factors. This product is suitable for IT and industrial buyers requiring reliable, corrosion-resistant wire terminations for 4 AWG stranded copper cables with a 5/16" stud size.
