Pacer DT Deutsch 12 Position Plug Repair Kit - 14-18 AWG

This repair kit is specifically designed for DT Deutsch plugs, suitable for 14-18 AWG wire applications. The kit utilizes bigger size 16 contacts, providing a reliable solution for wire-to-wire connections. The DT series connectors allow electrical designers to work with various sizes of contacts, accommodating applications up to 13 amps within a single housing.

Features:

• All necessary parts included for assembling a complete connector
• Includes one to two extra terminals for convenience
• Cavity plugs included to secure open circuits

Applications:

• Ideal for wire-to-wire connections
• Designed for rugged reliability and performance in various conditions

Compliances:

• Ingress Protection (IP) Level: IP68 and IP6K9K standards
• Compliant with EU RoHS and ELV directives
• UL-94 Recognized for safety

Characteristics:

• Wedge locks for enhanced contact alignment and retention
• Features redundant silicone seals for durability
• Contacts can be hand-inserted and easily removed

Technical Specifications:

• Number of Cavities: 12
• Housing Material: Rectangular receptacle made of glass-fiber reinforced plastic
• Contact Size: 16 (13 amp)
• Compatible Wire Size: 14 AWG
• Socket Support: Holds sockets only
• Operating Temperature Range: -55°C to 125°C

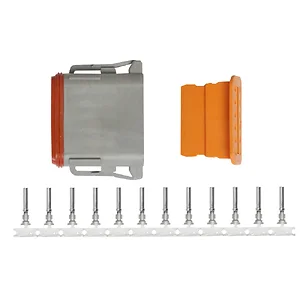

Contents:

• (1) 12 position plug
• (1) 12 position wedge lock
• (14) Sockets included
• (6) Cavity plugs for secure closing

The Pacer DT Deutsch 12 Position Plug Repair Kit, part number TDT06F-12RS, is a specialized solution for maintaining or repairing DT Deutsch wire-to-wire connections. This kit is designed for use with 14-18 AWG wire, specifically accommodating 14 AWG wires with its size 16 contacts, rated for up to 13 amps. It is suitable for applications requiring rugged reliability and performance across various conditions, making it relevant for IT infrastructure and industrial environments where robust electrical connections are critical. The kit provides all necessary components for assembling a complete 12-position connector, including a plug, wedge lock, 14 sockets, and 6 cavity plugs. Its features, such as redundant silicone seals, wedge locks for contact retention, and an operating temperature range of -55�C to 125�C, ensure durability and consistent performance. Compliance with IP68 and IP6K9K standards, along with EU RoHS, ELV, and UL-94 recognition, addresses environmental and safety requirements for professional applications.
