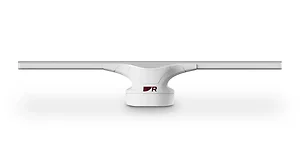

Raymarine 110 Watt Cyclone Radar with 6' Antenna
Model: T70496The ultimate expression of design, rugged performance, and unmatched situational awareness, Cyclone solid-state openarray radars give mariners the confidence to tackle the harshest conditions, gain the upper hand in the hunt for fish, and navigate busy waterways with confidence.
Cyclone radars deliver superior target separation and long-range resolution using CHIRP pulse compression and Raymarine beam sharpening technology. Each model features innovative detection capabilities, including Cyclone Bird Mode, RangeFusion™ technology and high speed 60 rpm imaging.
Specifications| Supply voltage (Using VCM100) | Nominal: 12 V dc or 24 V dc / Minimum: 10.2 V dc / Maximum: 31.2 V dc |
| Power consumption (typical) | 95 Watts |
| Power consumption (max) | 195 Watts |
| Power consumption (standby) | 28 Watts |
| Maximum range scale | 96 nm |
| Boot up time | 40 seconds |
| Standby to transmit | less than 5 seconds |
| Waterproof rating | IPX6 |
| Operating temperature range | -25°C to +55°C (-13°F to 131°F) |
| Humidity | Up to 93% at 40°C (104°F) |
| Maximum wind speed | 100 Kts |
| Power connection | 1x Power connector |
| Data connection | 1x RayNet connector |
| Transmitter frequency | 9370, 9400, 9430 MHz (User Selectable) |
| Peak power output | 110 Watts |
| Receiver characteristic | Linear |
| Receiver noise | Less than 5 dB |
| Pedestal | |
| Dimensions | 388 mm x 360 mm x 335 mm / 15.27 in x 14.17 in x 13.18 in (to the top of the antenna) |
| Weight | 16 Kg |
| Antenna | |
| Beamwidth (vertical) | 25 degree |
| Beamwidth (horizontal) | 1.32 degree |
| Polarization | Horizontal |
| Rotation speed | 12, 24, 36, 48, 60 rpm |
| Length | 1945 mm / 76.57 in |
| Weight | 12 Kg / 26.45 lb |
The Raymarine 110 Watt Cyclone Pro with 6ft Antenna (T70496) is a solid-state open array radar system designed for marine applications. It provides situational awareness for mariners navigating various conditions, from busy waterways to open seas. This system is engineered for durability, featuring a 100-knot wind rating and meeting the commercial-grade IEC 62388 standard. Its lower profile (13.1 inches tall) allows for adaptable installation options, and the pedestal design conceals cable connections for a cleaner setup. Key features include a fast 60 RPM rotational speed for real-time target tracking, Doppler target tracking to differentiate dangerous and safe targets, and professional-grade ARPA target tracking for up to 50 targets. RangeFusion� technology combines short and long pulses for a single, clear radar image, while an enhanced Cyclone Bird Mode utilizes CHIRP pulse compression for locating seabirds. This radar is suitable for commercial and recreational vessels requiring robust performance and advanced detection capabilities.
T70496 - Raymarine 110 Watt Cyclone Pro With 6ft Antenna 15m Cables
